SIEVE CALIBRATION STANDARDS
sieve calibration graph
sieve calibration beads
Sieves can be calibrated precisely and economically using Endecotts Glass Microspheres. This method has the advantage of quick calibration without any special equipment and can be done by anyone familiar with sieving procedures.

This process allows for analysis of over 80% of the sieve surface. The glass sample beads are certified using electroformed sieves NIST & NPL traceable and are accurate to .01 mm for the smaller aperture sieves.

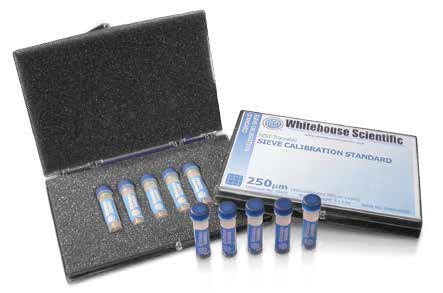

The calibration samples are microspheres formed from glass that range from 3.35 mm down to 20 µm sizes.  The single shot bottles remove operator sampling errors. Each sample batch is supplied with a Calibration Certificate.
Calibration Sample Procedure:

Select the calibration sample size that matches the sieve aperture size.

Simply read off the percentage passing along a graph like this supplied with every sample.
SODA LIME GLASS SIEVE CALIBRATION SPHERES
620 60026
PURCHASE ONLINE
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133

WWW.QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
qclabequipment
qclabequipment
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
qclabequipment
sieve calibration sizes
sieve calibration sizes
sieve calibration certificate
EACH SET CONTAINS 5 BOTTLES
Recommended number of bottles per sieve

SIEVE DIAMETER

200mm or 8 inches                      1 bottle
300mm or 12 inches                    2 bottles
450mm or 18 inches                    5 bottles
sieve calibrator
SIEVE CAL
NEW AUTOMATIC SIEVE CALIBRATOR
METHOD INSTRUCTIONS
sieve calibration beads
sieve calibration certificate

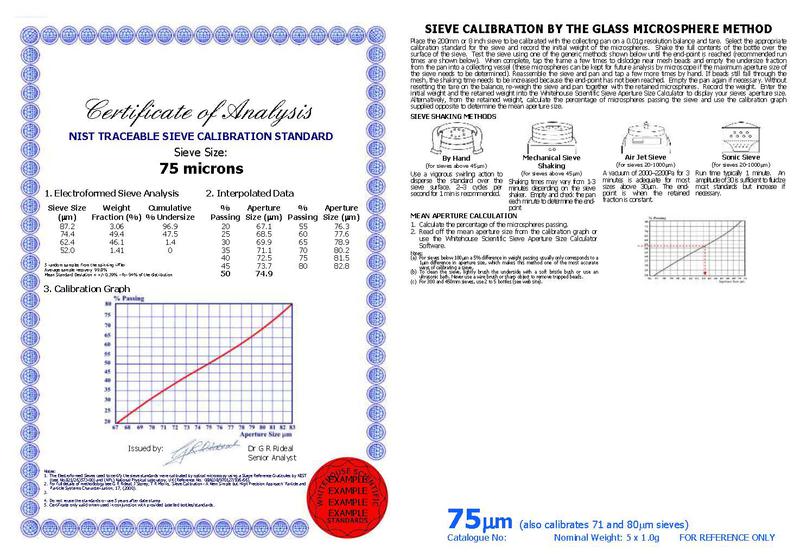

SAMPLE NIST CERTIFICATE
