LABORATORY TEST OVENS AND FURNACES
FULL RANGE BROCHURE
Producing advanced thermal processing
equipment since 1960
Quality Management System certified by
Bureau Veritas Quality International in
compliance with ISO 9001:2008 / LST
EN ISO 9001:2008 standards.
Low temperature electric ovens for thermal processing to 350 c. High quality construction utilizing advanced technologies. Single and multiple chambers, natural convection or forced air.
Programmable temperature controller Omron  E5CN-HT

Non-programmable temperature controller Eurotherm 3216

Programmable temperature controller Eurotherm 3208

PC connection and software SNOL V1.12

OTP (over temperature protection)

Timer

Buzzer (audible signal)

Window 258 x 250 mm

Window 320 x 318 mm

Additional hole with cover Ø 50 mm

24 month warranty
680 58/350 LSN11 STAINLESS STEEL COATING
CHAMBER    W 390 mm x L 380 mm x H 360 mm    EXTERIOR  W 685 mm x 675 mm x 615 mm

680 58/350 LSP11 POWDER COATING
CHAMBER W 390 mm x L 380 mm x H 360 mm       EXTERIOR W 685 mm x 675 mm x 615 mm​

680 67/350 LSN01 STAINLESS STEEL COATING
CHAMBER W 390 mm x L 445 mm x H 390 mm       EXTERIOR W 685 mm x 625 mm x 615 mm

680 67/350 LSP01 POWDER COATING
CHAMBER W 390 mm x L 445 mm x H 390 mm       EXTERIOR W 685 mm x 625 mm x 615 mm
OPTIONS
SNOL products comply with European
Union Directives LVD 2006/95/
EC, MD 2006/42/EC, ECD 2004/108/EC,
and RoHS 2002/95/EC; and bear the CE Mark.
Thermal insulation
materials are certified by Det
Norske Veritas. The company’s Quality
Management System is certified by
Bureau Veritas Quality International in
compliance with ISO 9001:2008 / LST
EN ISO 9001:2008 standards.
BUY ONLINE
Email Address
First Name
Company Name
Last Name
Delivery Address
Address Line 2
Ship To Postal Code
Telephone
QUICK QUOTE
ADD BILL TO INFORMATION
Email Address
First Name
Company Name
Last Name
Billing Address
Address Line 2
Bill To Postal Code
Telephone
SPECIAL INSTRUCTIONS
BILL TO SAME A SHIP TO
BROCHURE FEATURED OVENS
BASIC MODEL

• Natural or forced air circulation

• Regulated air intake and extraction

• Chamber made of mild or stainless steel

• Hermetically closed doors

• Microprocessor-controlled thermoregulator

• Includes standard shelves

• High-quality, ecological thermal insulation material

• Low electric power usage

• Short heating up/cooling down period

• High degree of accuracy

• Exterior painted with powder coating (RAL 7035)

• 1 year guarantee
OPTIONS

• Supplemental shelves

• Reinforced shelves

• Metal tray

• Reinforced bottom

• Digital timer

• Buzzer

• Protection against overheating

• Data recorder

• Computer connection via RS232/RS-485/USB

• Calibration of temperature measurement system

• Furnace exterior made of stainless steel

• Table for supporting the furnace

• Additional 1 year guarantee

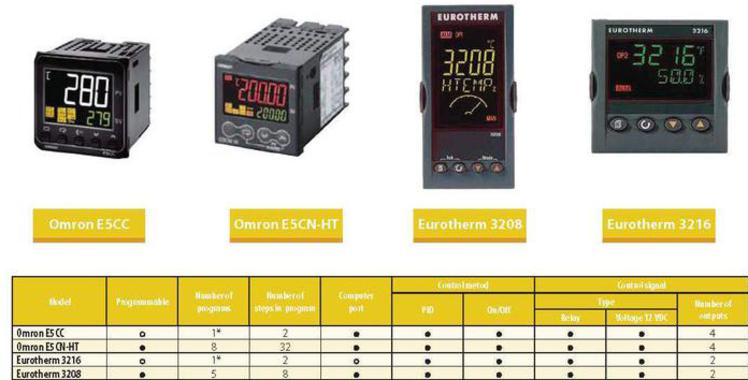

STANDARD CONTROLLER
4.1 Temperature controllers

SNOL products are equipped with high-precision digital microprocessor Omron or Eurotherm temperature controllers fittedwith self-tuning and manual PID settings. Temperature measurement is supported by thermocouple. The customer can select a basic or programmable temperature controller whith up to 32 programming segments (rate of temperature rise or decrease control, maintenance of preset temperature, automatic shutdown). A wide range of devices allows to select the most appropriate controller for your process.
680 E5CNHT
680 3216
680 3208
680 1.12
OTP
TIMER
BUZZER
680 258/ 250
680 320/318
680 HOLE 50 mm
680 WTY 24
