SHERWOOD SCIENTIFIC M501

PROGRAMMABLE FLUID BED DRYER & MOISTURE ANALYZER
DRIES UP TO 5 kg OF WET SOLID UP TO 80 % MOISTURE ON SOME SAMPLE TYPES IN 15 MINUTES
LOSS ON DRYING
THERMOGRAVIMETRICS

Moisture Balances greatly reduce the time required to perform an LOD Test.
Here, the sample is heated and weighed simultaneously, until the unbound moisture has evaporated. Although the sample size needs to be somewhat small, in order to fit on the 3-4 inch diameter sample pan, only ten grams of sample is required for an accurate test.

Because of the small sample size, it is recommended that the sample be ground, and spread as evenly as possible to help facilitate moisture diffusion. The larger the particle size, the more difficult it becomes for moisture to diffuse, and the greater the risk of carbonization, as the outside generally heats  quicker than the inside. It has been noted that during grinding, especially with hygroscopic materials, moisture and volatile loss can occur.

In most applications the amount of miscellaneous loss through sample grinding can be accounted for, by weighing the sample before and after grinding, and wiping any residue from the grinder with glass fiber pads, then incorporating the glass fiber pads in to the test. Glass fiber pads are also recommended to help prevent surface burn, as well as to eliminate the effects of sample color on heat absorption.
CARBONIZATION
CARBONIZATION
TEMPERATURE RESISTANT
TEMPERATURE RESISTANT
VOLATILES
VOLATILES
FEATURES SPECIFIC
TO APPLICATIONS WHERE UNIFORM DRYING IS CRITICAL
THERMOGRAVIMETRIC SAMPLE PROFILES
ADVANCED MOISTURE BALANCE
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
INFORMATION@QCLABEQUIPMENT.COM
WWW.QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | sales@qclabequipment.com
SAMPLER CATALOGUE
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

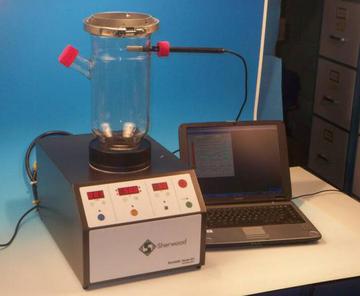

SHERWOOD M501 ADVANCED LABORATORY FLUID BED DRYER DYNAMIC MOISTURE ANALYZER

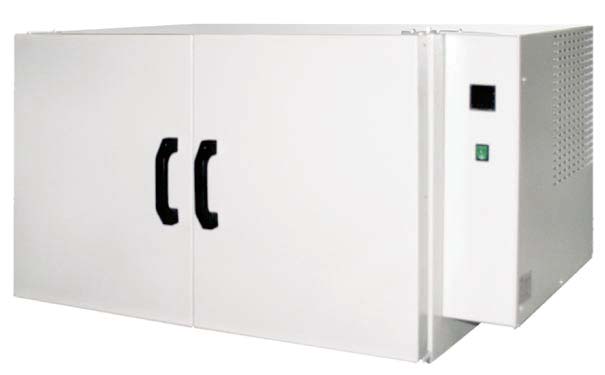

Laboratory Ovens are considered the official method of moisture determination, for many substances, including coffee, sugar, chemicals, sand, and adhesives.

They are available with natural convection or with forced air.

Many samples may be dried at once, although tests can take up to 24 hours to complete.

Organic materials and materials with volatiles, are heated at lower temperatures (BELOW 105 c) , to allow moisture to evaporate.
Every material has unique thermal emission and absorption characteristics.

Emissivity is a measure of the efficiency in which a surface emits thermal energy. It is equal to the amount of thermal energy it can absorb, once temperature equilibration has been attained.

A black body is a material that is a perfect emitter of heat energy and has an emissivity value of 1. Coffee is in the range of .7 to .9

Here you can see a halogen (Short Wave ir), on the left, and next to it an IR Emitter Heat Source (Mid Range IR), on the right. There is a visible difference in the brightness of the light. The IR Emitter Heat Source​, is used for coffee application, as it speeds up the process.
SAMPLE SPECIFIC HEAT SOURCE

3 CHOICES AVAILABLE:

HALOGEN - SHORT WAVE IR (EXAMPLE:SUGAR)

IR EMITTER- MID WAVE IR (BEST FOR COFFEE / TEA)

METAL- LONG WAVE IR (FOOD APPLICATIONS THAT SPECIFY NO GLASS)

When using a moisture analyzing balance, care has to be taken to ensure it is equipped with the most efficient heat source.

Less sample degradation, and quicker results
are the result.
​AUTOMATIC SETTINGS- While most moisture balances have automatic default settings programmed initially, when dealing with sample types that are subject to carbonization, and/or loss of volatiles, while heating, we recommend comparing results obtained at lower temperatures for longer time frames
  (105 c for two hours is a good place to start), to results obtained with the automatic setting. Compare the results as well as  the characteristics of the sample, ie... color, etc...

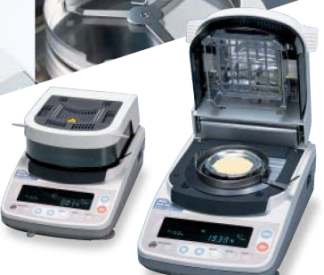

Moisture balances, often referred to as Infra-Red, or Thermogravimetric Moisture Analyzers, heat and weigh the sample simultaneously, eliminating accuracy errors resulting from transporting oven samples to a weighing station. They automatically detect the endpoint, by shutting off when the rate of drying changes beyond pre-programmed parameters.

If the automatic setting results in a carbonized sample, or notably different moisture results, revert to the lower temperature protocol, and gradually raise the temperature and decrease the time on the tests, as much as you can, without altering the end result. It often helps to plot the time and percent moisture and visualize the drying curve Above are examples of drying curves showing the characteristics of carbonization, volatile burn off, and temperature resistant samples. Many moisture balances allow for programming the drying process in steps, so that the drying parameters can be optimized for the samples characteristics at different stages.
