SINAR DRYPRO INLINE MOISTURE & TEMPERATURE MONITORING

The Drypro™ is a mains powered single or multi sensor moisture measuring system.

There are only three operator modes, which make the Drypro™ quick to learn and easy to use. Once set up, the Drypro™ can give sequential moisture and temperature readings from each sensor installed.

Your Drypro™ is supplied with seven crop calibrations as standard, but can store up to a maximum of twenty-five. Contact Sinar Technology, or your Sinar agent if your calibration requirements change.

The RS232 port can be used for the transmission of time, date, moisture and temperature data, to the Sinar Mlog™ data logging software. This data can be used to generate your own quality assurance files, and or quality files to be presented to your customer.

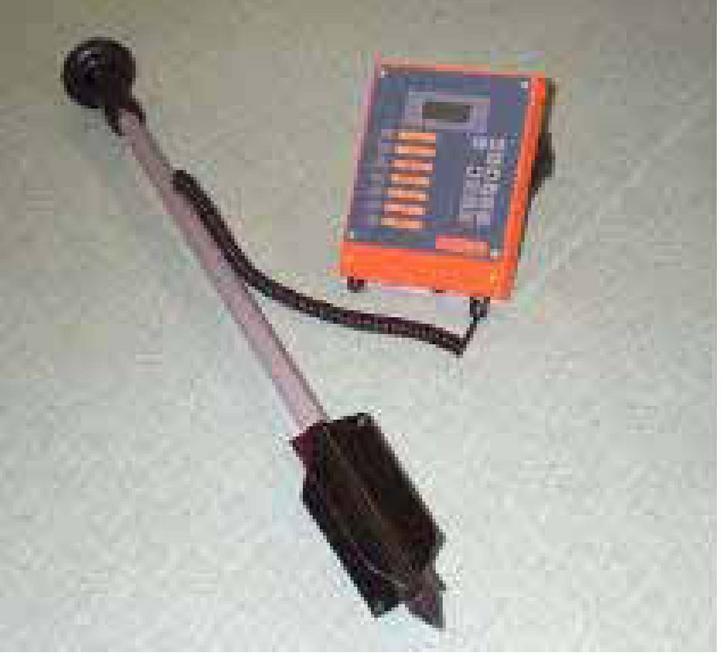

STANDARD PENDULUM SENSOR

CAN BE ATTACHED WITH AVAILABLE MAGNETIC MOUNT

FLAT SENSOR INSTALLED IN A GRAIN DRYER

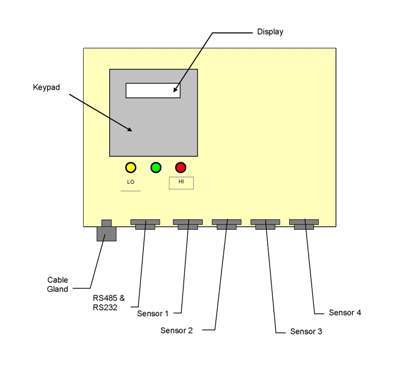

   DRYPRO CONTROL PANEL BOX

FIRST NAME / LAST NAME

COMPANY NAME

EMAIL ADDRESS

SHIP TO COUNTRY & POSTAL CODE

USE THIS SECTION FOR PURCHASING QUOTATION AND / OR COMMENTS

• SEQUENTIAL SENSOR OUTPUT FOR BATCH TYPE DRYERS


• PROVIDES TEMPERATURE & MOISTURE OUTPUT


• AVAILABLE FLOW REGULATOR


            FOR CONTINUOUS SYSTEMS

• MINIMIZE FUEL WASTE


• Dimensions (mm):H300 x W 400 x D150


• Display Unit Weight:8.0 KG


• Max. Number of Sensors:4


• Max. recommended distance between display Unit and sensors: 100 Meters.


• Display Unit Construction:Mild steel, powder coated.


• Mounting:4 off wall mounting lugs to suit M8 bolts.


• Operating Environment:0 to +55ºC.


• Storage Temperature:-20 ºC to +55 ºC; Humidity to 95% non-condensing.


• Humidity:Up to 95% non-condensing.


• Display:Alphanumeric LCD, 2 x 20 characters.


• Processor:Intel 80C31 microprocessor.


• Memory:EPROM and RAM


• Calibrations supplied.


• (Upgradable via the RS232 port).7


• Max. calibration capacity:25


• Data Output Formats:RS232 C, ASCII code, 300 Baud.


• Max recommended transmission  distance - 15m.RS485.


• Max transmission distance – 2Km.


• Moisture Accuracy:± 0.5% dependant on application and moisture level.


• Output Interval. Minimum (seconds).4


• Temperature Accuracy:± 1 ºC.


• Displayed Temperature:ºC or ºF


• Display Resolution:1 Decimal place.


• Power Supply80-240 V AC 50/60Hz 0.5 A


• Fuse Rating:


• FS1  250 V 20mm (F) Quick blow.


• FS2  250 V 20mm (F) Quick blow.


• FS3  250 V 20mm (F) Quick blow.


• FS4  250 V 20mm (F) Quick blow.


• FS5  250 V 20mm (F) Quick blow.


• Temperature Correction:Temperature sensor mounted on fin.


            Correction factor is software programmable. Correction range 0-40 ºC.

• Sensor Dimensions (mm):Ø80 x 380


• Sensor Weight: (Inc. mounting bracket).1.2 KG


• Operating Environment:0 to +70 ºC.


• Storage Temperature:-20 ºC to +70 ºC; Humidity to 95% non-condensing.


• Humidity:Up to 95% non-condensing.


• Cable Length Supplied:2 meters.


TECHNICAL SPECIFICATIONS CONTROL PANEL

TECHNICAL SPECIFICATIONS SENSORS
