COLORTRACK LASER REFLECTOMETER COLOR AND SHADE ANALYZERS
NOTE: ALL COLORTRACKS REQUIRE A PC TO FORM A COMPLETE SYSTEM
645 R100 STANDARD BENCHTOP COLOR ANALYZER WITH ColorTrack
WITH USB ADAPTER

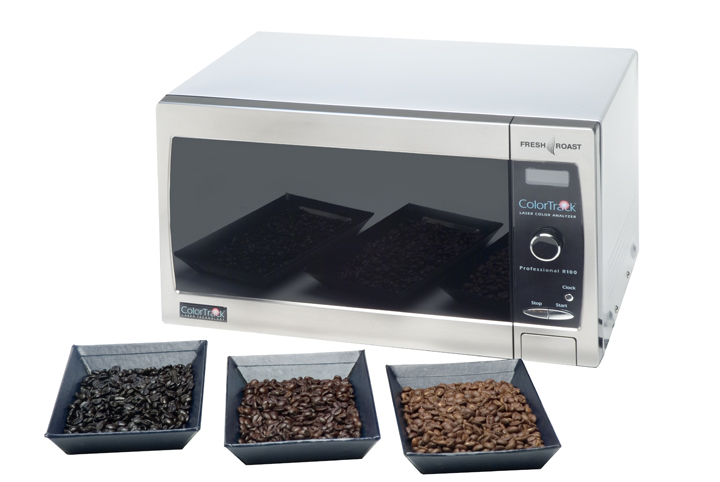

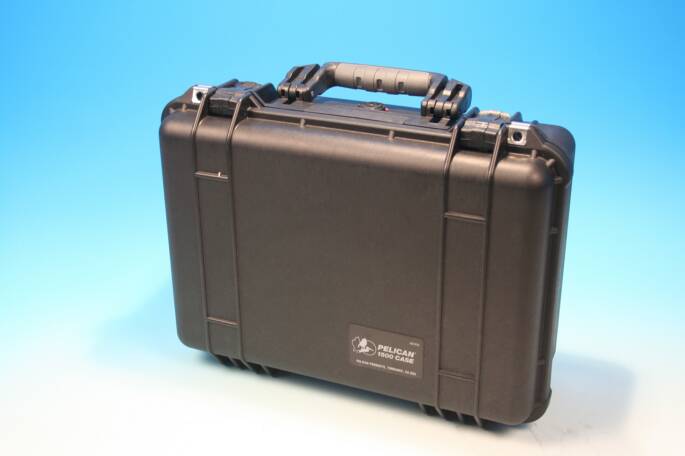

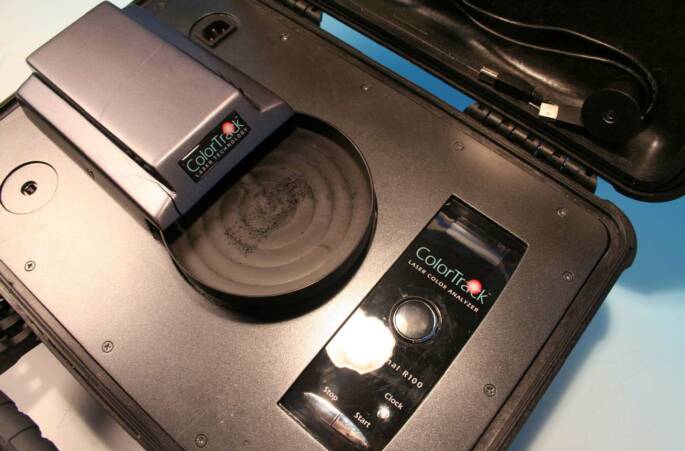

Complete Series of laser reflectometers for color and shade analysis in food and beverage products, aggregates, and more. Portable brief case unit, bench top unit, digital handheld unit, and inline real time laser analyzers, utilize 785 nanometer energy waves, (Optimal range in the color spectrum for distiguishing shade differences) to provide unparalleled accuracy and repeatability in color and shade detection. ColorTrack applications include roasted coffee, malt hops, french fries, as well many others.
Instead of operating with a human eye simulation color model, the ColorTrack Benchtop uses a sophisticated laser module and software, to transmit and receive some 10,000 reflection signals per second, while the sample rotates beneath the lens.
INSTANT QUOTATIONS INCLUDING SHIPPING, AND ONLINE ORDERING AVAILABLE AT
FOR A QUOTATION , SELECT PURCHASE ORDER AS PAYMENT OPTION, AND TYPE "QUOTE"IN FIELD PROVIDED
NO ITEMS WILL BE SHIPPED WITHOUT A VALID PO BY AN APPROVED COMPANY

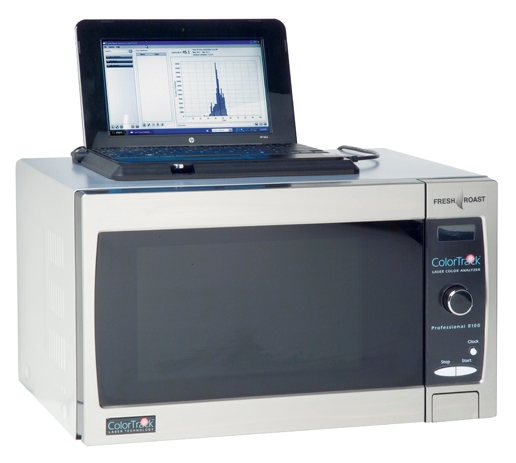

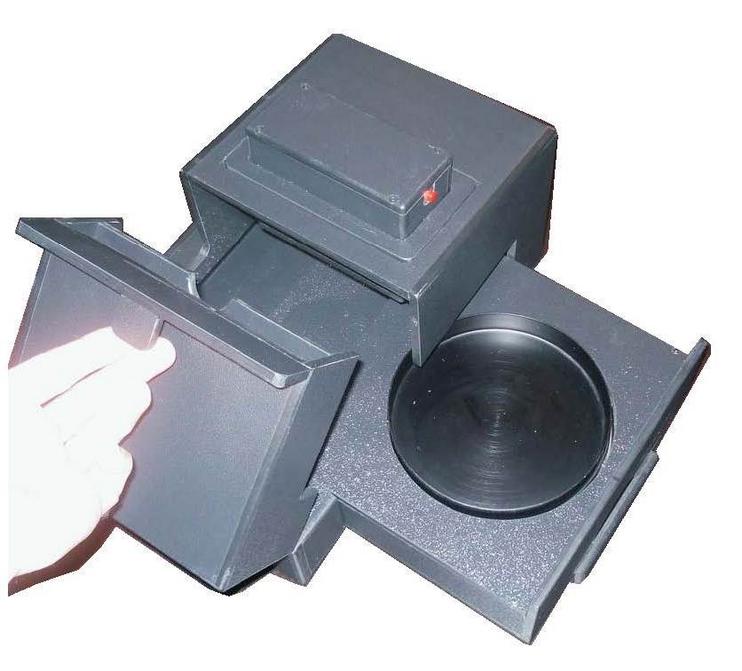

DELUXE BENCHTOP CHASSIS WITH SAMPLE TURNTABLE FOR DYNAMIC ANALYSIS
REMOVABLE
LASER MODULE
FOR REMOTE
ANALYSIS.
CAN BE MOUNTED FOR INLINE CONTINUOUS COLOR MEASUREMENT.
VOTED BEST NEW PRODUCT SCAA 2011

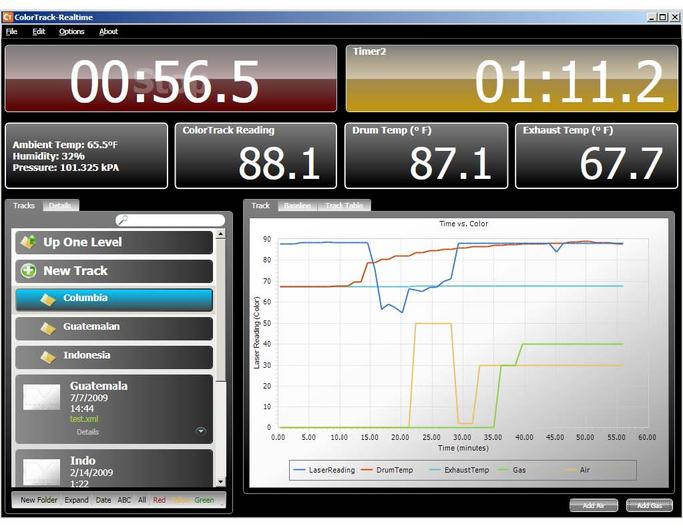

REAL TIME DATA LOGGING AND PLC AUTOMATION SOFTWARE.
MULTIPLE VARIABLE INPUTS. # 645 CRTSFT
AVAILABLE FOR OEM LICENSING
# 645 R100110
# 645 D100
# 645 HH100
# 645 HH100SOFT
# 645
CRTSOFT
# 645
R100SOFT
What this means is the entire path of sample beneath the lens is measured, providing data from approximately 200,000 signals in a recommended 20 second scan. The data acquisition module collects and converts the readings to a series of digital signals, that are then transferred to a pc, by means of a USB Plug.

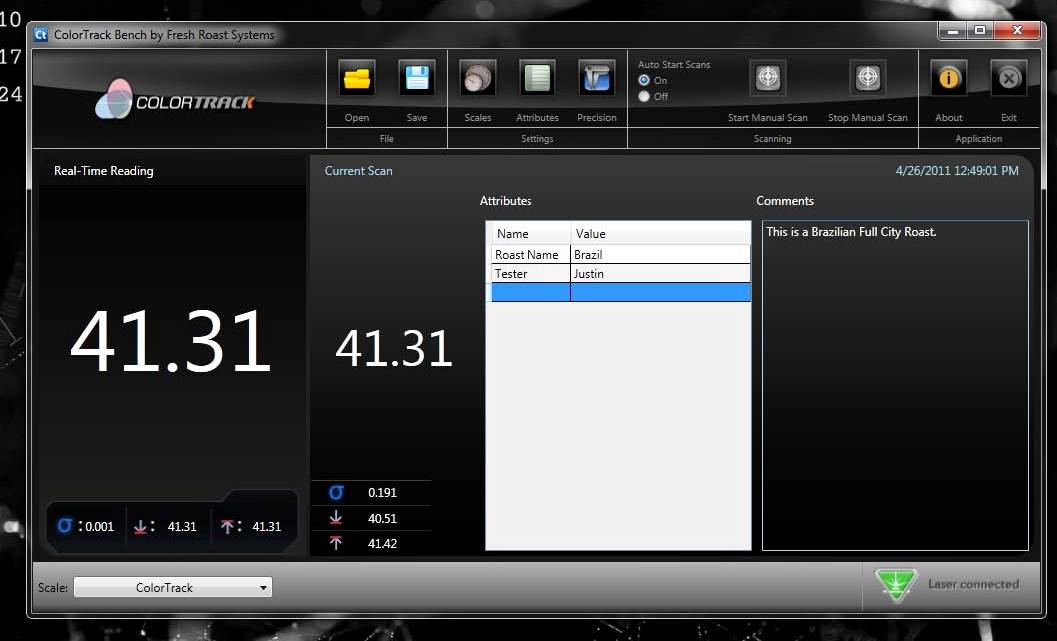

The included software, then expresses the data in a statistical format, including the average reading, mode, minimum and maximum values, as well as standard deviation. A graphical representation is also provided, and the results can be saved and stored, or sent by email to another location

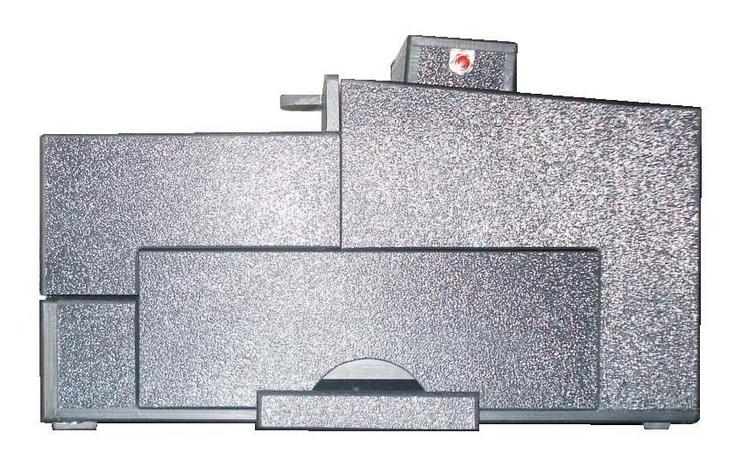

DELUXE BENCHTOP SHADE ANALYZER FOR IN LAB, IN LINE, OR REMOTE ANALYSIS
STANDARD BENCHTOP SHADE ANALYZER
STANDARD INLINE SHADE ANALYZER
# 645 RT100
# 645 CRTSOFT
REAL TIME DATA LOGGING AND PLC AUTOMATION SOFTWARE.
MULTIPLE VARIABLE INPUTS. # 645 CRTSFT
AVAILABLE FOR OEM LICENSING
STANDARD REAL TIME LASER MODULE CAN BE EASILY MOUNTED FOR CONTINUOUS, INLINE, COLOR AND SHADE DETECTION
