Bostwick Consistometer
#600 ZXCON
QUALITY CONSTRUCTION
MADE IN ENGLAND
FEATURES

DURABLE STAINLESS STEEL CONSTRUCTION
              Resists corrosion
              Suitable for laboratory and plant use

CONVENIENT SIZE
              Uses little bench space
              Requires only 75 mL of sample

SPRING LOADED GATE
              Instantaneous gate release
              Prevents premature flowing of sample

TWO LEVELING SCREWS & SPIRIT LEVEL
              Assures repeatiblitiy
              Precise positioning of flow angle

ENGRAVED GRADUATIONS OF 0.5 cm DIVISIONS
              Assures accurate results
              Wear and smear resisatant
The original Bostwick Consistometer is the preferred choice for measuring consistency, flow rate and viscosity in a variety of products.

Use the Bostwick Consistometer on any viscous material such as sauces, salad dressings, paints, chemicals or cosmetics, to measure the distance a material flows in a given time interval.

The Bostwick complies to Mill Spec R-81294D and ASTM F1080-93 and is made of stainless steel construction.
Consitometer components
APPLICATIONS

Food Processing- Tomato Sauces, Soups, Baby Foods
Paint Manufacturing- Epoxy Removers, Adhesives, Coatings
Cosmetics Formulations- Shampoos, Lotions, Flow Base Creams
Chemical production- Viscous Liquids, Slurries, Emulsions
NEXT DAY DELIVERY AVAILABLE!
ORIGINAL ENDECOTTS BOSTWICK CONSISTOMETER
BUY ONLINE
QUOTATION /  INFORMATION REQUEST
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
INFORMATION@QCLABEQUIPMENT.COM
WWW.QCLABEQUIPMENT.COM

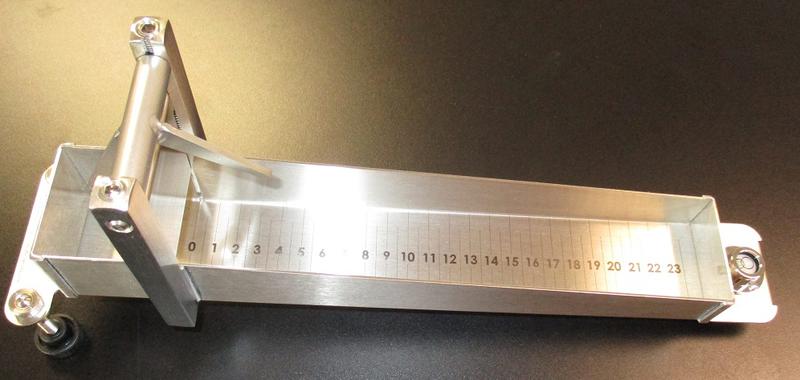

600 ZX CON CON 1          ORIGINAL BOSTWICK CONSISTOMETER                      300 mm

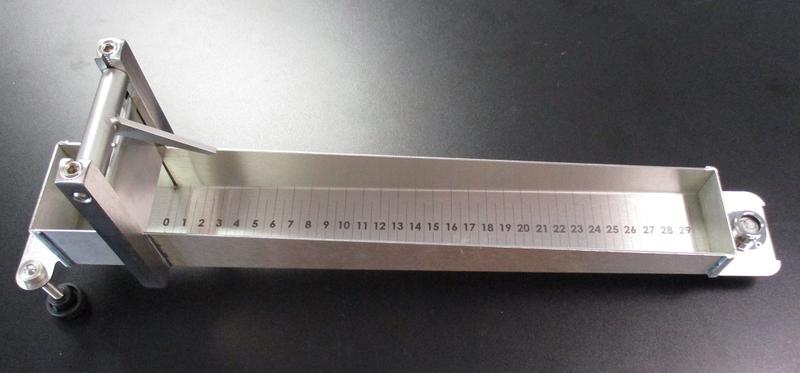

600 ZX CON CON 3          BOSTWICK CONSISTOMETER (EXTENDED)                   414 mm
QTY         REF#                                DESCRIPTION                                                         LENGTH

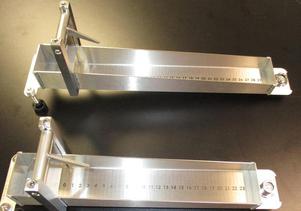

NOW AVAILABLE IN EXTENDED LENGTH
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | sales@qclabequipment.com
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
NEXT DAY DELIVERY AVAILABLE ON MANY ITEMS!
CUSTOM ORDERS AVAILABLE!
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION
TEL (866) 244-1578
SAMPLER CATALOGUE
​ORIGINAL ENDECOTTS BOSTWICK CONSISTOMETER

for the determination of the flow of a standard volume of a semisolid or thick liquid under its own weight.

Reproducibility- within .5 cm with same operator and same sample.

NOTE: Viscous materials may vary in consistency, depending on the age of the sample, the temperature of the sample, and shear history.
BROCHURE BOSTWICK CONSISTOMETER
SIMPLE OPERATION​

Fill the reservoir with about 100 ml,of a 250 ml prepared sample, and level off the top with a straight edge.

Temperature of device and sample should be the same.

Press down on the trigger to open the gate at the beginning of the time cycle.

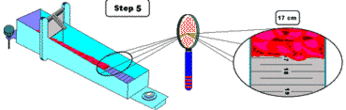

At the end of the selected time period, (5 MIN ASTM 1080) determine how far the material has flowed along the trough.

Take the maximum reading at the center of the trough, and the minimum reading at the edge of the trough, and average the values.

The average value is then compared against a previously determined standard.
