SAMPLER CATALOGUE
REFRACTOMETERS / BRIX METERS

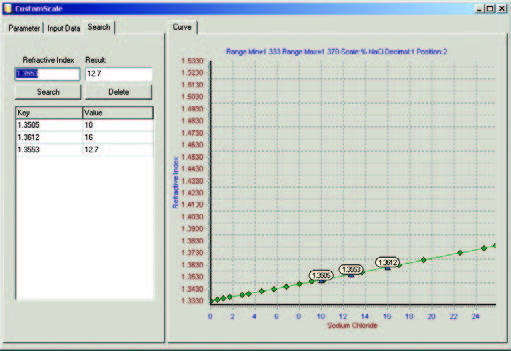

Create your own custom scales

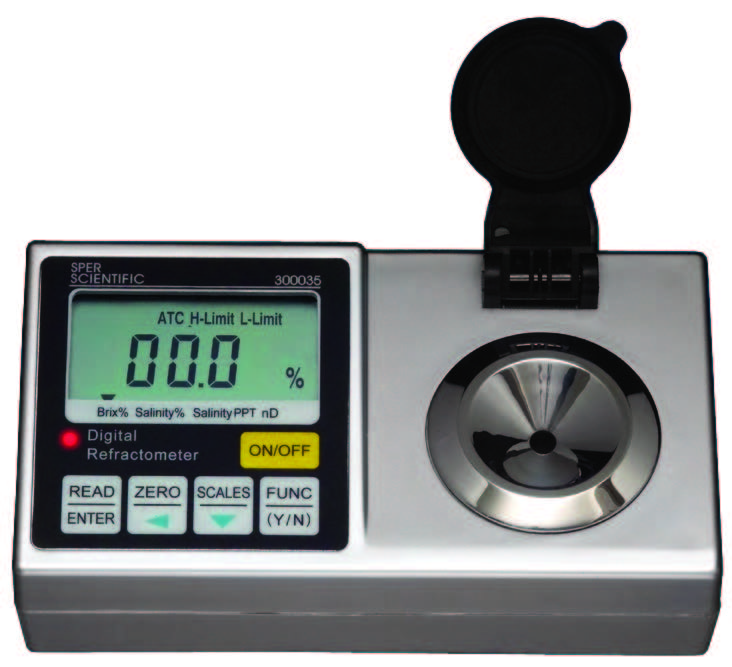

This programmable refractometer comes pre-loaded with the commonly used Brix (0 ~ 95%) and nD (refractive index) scales.

In addition, you may create your own custom scales. An unlimited number of scales can be stored in the software’s database.

Transfer these from your computer to the three numbered display positions on the Programmable Refractometer using the built-in RS232 computer interface.

Scales can be loaded and unloaded from your database to your refractometer at any time.

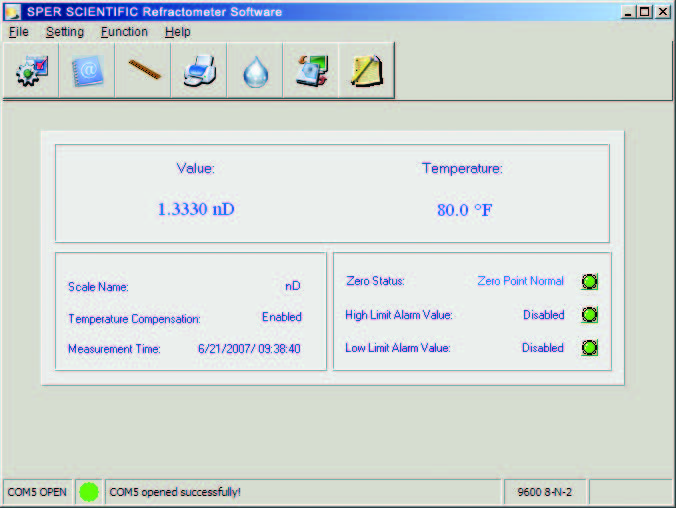

Test results can be saved to your computer, graphed and analyzed. Reads samples as small as 0.4ml
with full scale accuracy of 0.2% using CCD scanner (linear scanned array imaging) technology.

Measurement results, unit of measure, and sample temperature are all displayed on the large LCD,
and visual alarms are indicated by a red LED.

The programmable refractometer’s sophisticated
microprocessor provides automatic calibration, automatic temperature compensation, and automatic
shutoff (after 3 minutes). A sturdy water resistant case protects the electronics from wet environments
and makes for easy clean ups. Features one button calibration to distilled water and indicates when
the battery should be replaced (5000 readings). Scratch resistant sapphire crystal lens. Comes ready
to use with a 9V battery, distilled water, transfer pipette, cable, AC adaptor, software, instructions
and a protective case.
dim: 7" × 4" × 2½" (180 × 100 × 65 mm). weight: 18 oz (500 g).
