QAQC LAB LIQUID SAMPLER
QAQC LAB LIQUID SAMPLER FOR LOW AND MEDIUM VISCOSITY CROSS SECTIONAL AND POINT LIQUID SAMPLING 675 5035
Type: Single Point & Cross Sectional

Operation:

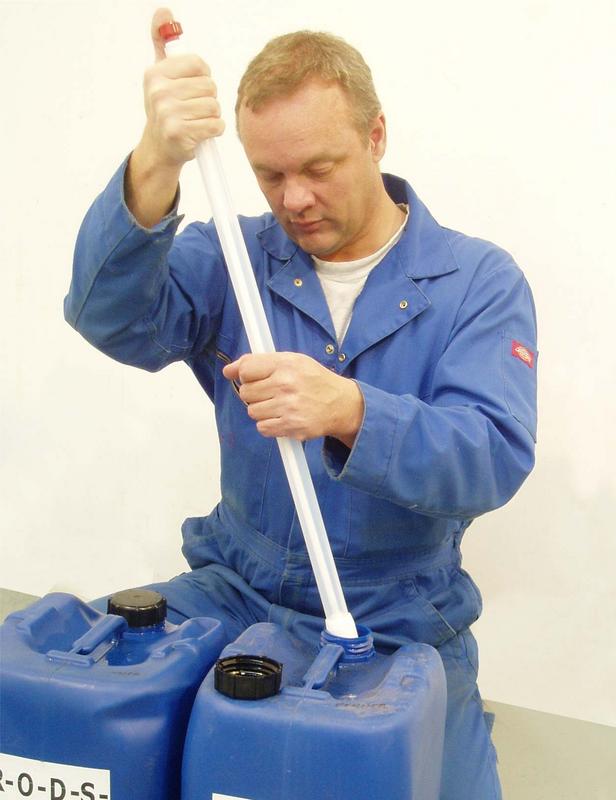

Technique 1 - Point Sampling Insert  the  sampler.
                          Press  the  push  button  to  take sample.
                          Remove the sampler.


Technique 2 - Cross Sectional
                          Press  the  Push  Button  and  then  slowly  insert  the sampler into the product.
                          As the sampler is pushed in a cross  sectional sample is taken. Release
                          the push button at the required depth to stop any more liquid from entering the
                          sampler. Remove the sampler.

                          NOTE: To take a large sample the sampler needs to be inserted deep into the product.
AVAILABLE IN:

PTFE/ MFA- a semi-crystalline fully-fluorinated melt processable fluoropolymer which offers the highest temperature rating, and broadest chemical resistance of all melt processable fluoropolymers. It is an ideal choice for extreme thermal and chemical environments.

PTFE/FEP- TetraFluorEthylene-Perfluorpropylene is a relatively soft thermoplastic with lower tensile strength, wear resistance, and creep resistance than many other engineering plastics. However, it is chemically inert and has a low dielectric constant over a wide frequency range. FEP possesses a very high degree of stress crack resistance, a low coefficient of friction, exceptional dielectric properties, heat resistance, retention of properties after service at 400°F (204°C) with useful properties at -454°F (-270°C), and meets FDA 21CFR.177.1550.

STAINLESS STEEL 316- Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments.

POLYPROPYLENE- is a thermoplastic polymer used in a wide variety of applications including packaging and labeling, textiles (e.g., ropes, thermal underwear and carpets), stationery, plastic parts and reusable containers of various types, laboratory equipment, loudspeakers, automotive components, and polymer banknotes. It is rugged and unusually resistant to many chemical solvents, bases and acids.
BUY ONLINE
BILL TO INFORMATION:
Email Address
First Name
Zip or Postal Code
Company
Telephone
Last Name
Street Address Line 1
Street Address Line 2
BILL TO SAME AS SHIP TO
First Name
Zip or Postal Code
Company
Telephone
Last Name
Street Address Line 1
Street Address Line 2
QUOTATION /  INFORMATION REQUEST

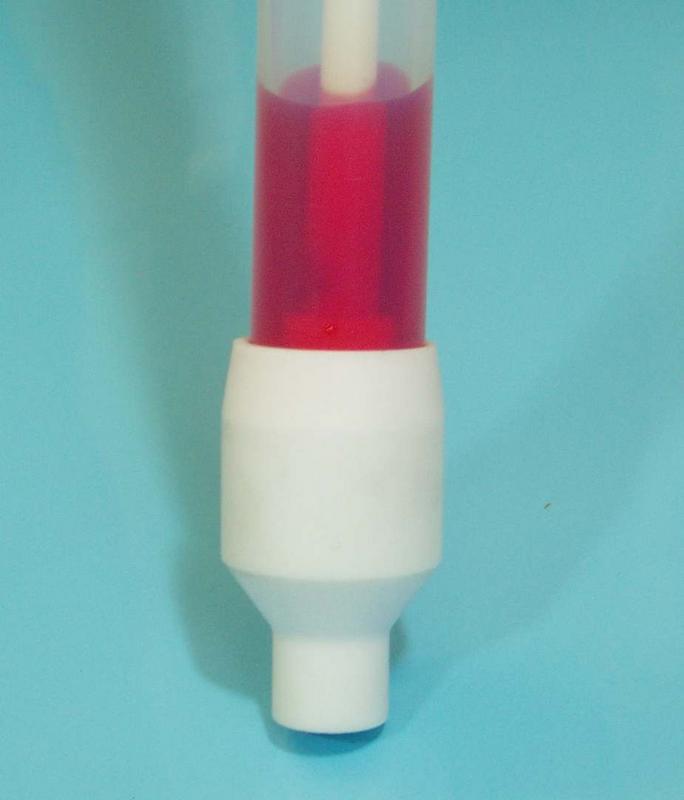

SEAL PREVENTS SAMPLE
FROM DRIPPING FROM TIP
PRESS BUTTON TO
TAKE SAMPLE
675 5035J 1000          PTFE/MFA           1000 mm                     500ml*                    35mm

675 5035J 1500         PTFE/MFA            1500 mm                    1000ml*                   35mm

675 5035J 2000          PTFE/MFA           2000 mm                    1500ml*                   35mm


675 5035S 600            316 SS                600 mm                     150ml**                    25mm

675 5035S 1000          316 SS               1000 mm                     270ml**                    25mm

675 5035S 1500          316 SS               1500 mm                     420ml**                    25mm


675 5035T 600            PTFE/FEP            600 mm                     150ml**                      25mm

675 5035T 1000          PTFE/FEP           1000 mm                    270ml**                     25mm

675 5035T 2000          PTFE/FEP           2000 mm                    420ml**                     25mm


675 5035P 600            Polypropylene    600  mm                     150ml**                      25mm

675 5035P 1000          Polypropylene   1000  mm                    270ml**                      25mm

675 5035P 2000          Polypropylene   2000 mm                    420ml**                      25mm
QTY       REF#                            MATERIAL         LENGTH                       CAPACITY               DIAMETER
