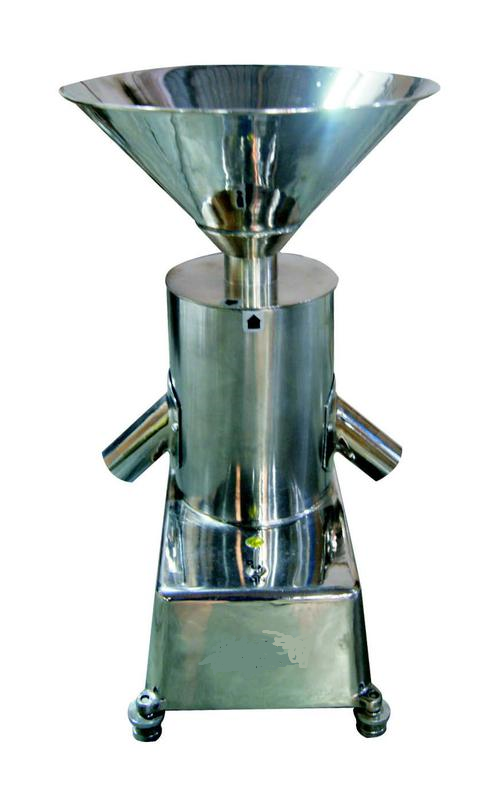

The GAMET TYPE DIVIDER is used for dividing and mixing grain samples

GAMET DIVIDER RUGGED INEXPENSIVE
QAQC GAMET DIVIDER 673 6713

Sample division and mixing are carried out by centrifugal action of motor driven, revolving neoprene disc positioned under hopper. Smooth inside finish virtually eliminates any of the sample sticking to inner surfaces.

The sample falls from the hopper on to the revolving disc and evenly splits into two smaller samples. All wearing parts are made of brass & body of high finish stainless steel, base of painted cast iron.  Hopper and cylinder top lift off together providing easy access to inner parts for cleaning.
SPECIFICATIONS

Size :                           38 x 31 x 51 cm (Approx.)
Hopper Capacity :        2 kg.
Motor :                         1/15 HP
Operating Voltage :    110V / 220V 50/60 Hz  AC.

Carton No. 1: Dimensions: 46 x 41 x 60 cm
Net Weight: 18 Kg
Gross Weight: 32Kg

Carton No. 2: Dimensions: 47 x 42 x 36 cm
Net Weight: 5 Kg
Gross Weight: 12 Kg
QAQC LAB GAMET TYPE DIVIDER
LOW COST SEED AND GRAIN DIVIDER
BUY ONLINE
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
www.qclabequipment.com
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
QAQC gamet divider
OPERATING INSTRUCTIONS
gamet divider
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
google70969e69c9325916.html
PRINCIPLE OF OPERATION
When a grain sample falls from the hopper over the neoprene disc revolving at a speed of
8000 rpm, the grains are dispersed by the disc from centrifugal force towards the finished inner walls of the cylindrical body which allows the grains to fall through the spout. Samples are divided into two equal parts.

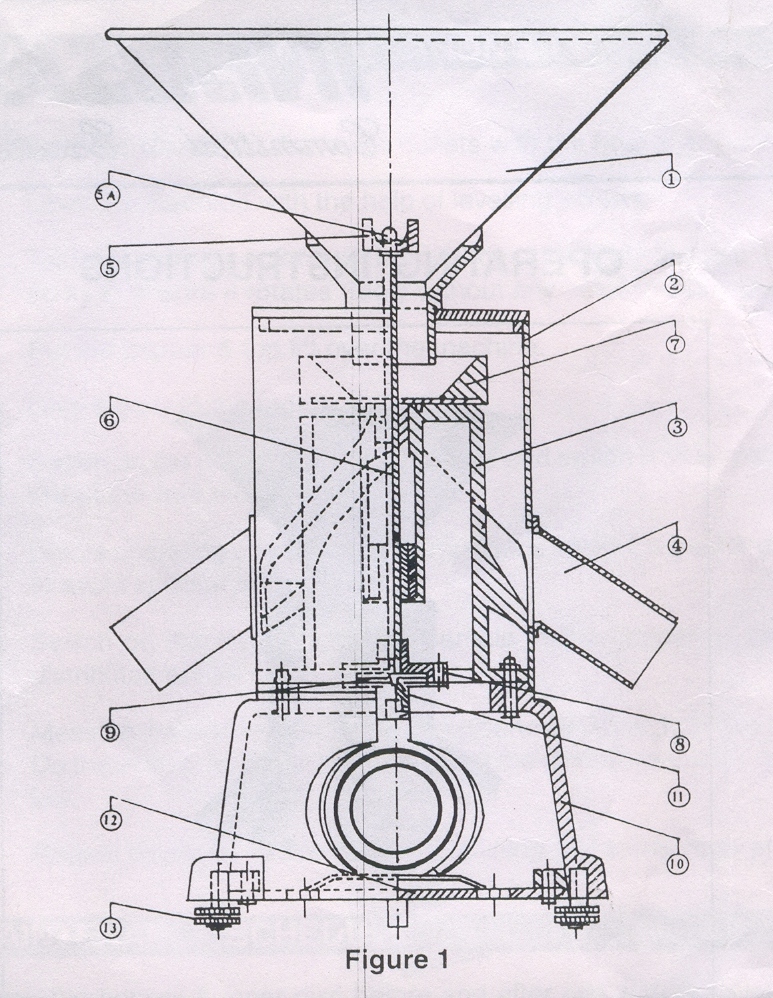

gamet divider schematic
HOPPER & TOP LIFT

The hopper is made of Stainless steel, with a capacity of 2000 gms (based on wheat). It is designed in such a way that the walls do not create any resistance in the motion of the grains. The hopper top lift, is made detachable for access to interior parts for cleaning and adjustments.

BROCHURE

QUICK QUOTE
DISCHARGE OUTLETS & OUTER BODY

The outer body has cylindrical shape, and is made of stainless steel, which does not allow the samples to stick on the inner surface. The discharge outlets are detachable, and made of stainless steel. Inside the cylindrical body is a motor with a neoprene disc. The disc is mounted on the shaft of the motor under the hopper. The motor used in the divider is of single phase, 80 watt, 8000 rpm, AC supply.
STORE SEARCH
The GAMET TYPE DIVIDER is used for dividing and mixing grain samples and performs accurately on all grains, seeds, feeds etc.
