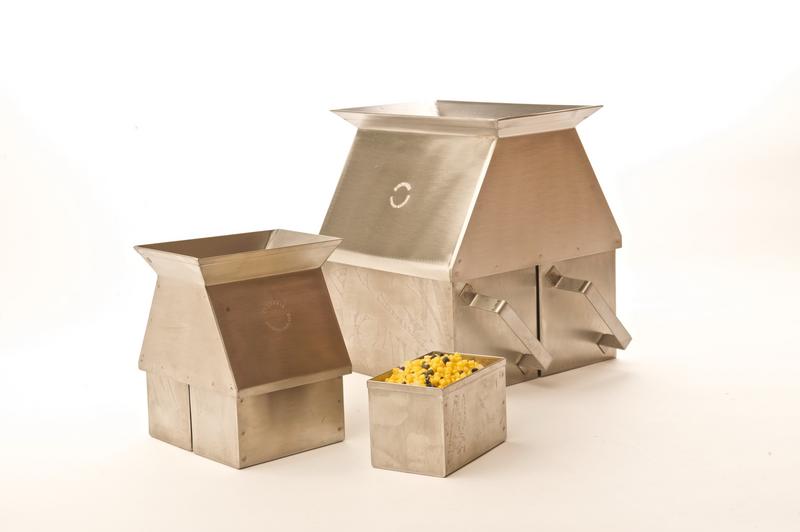

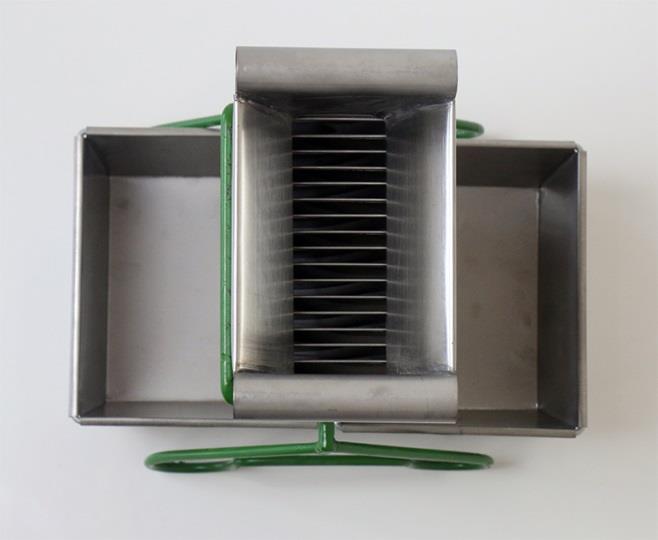

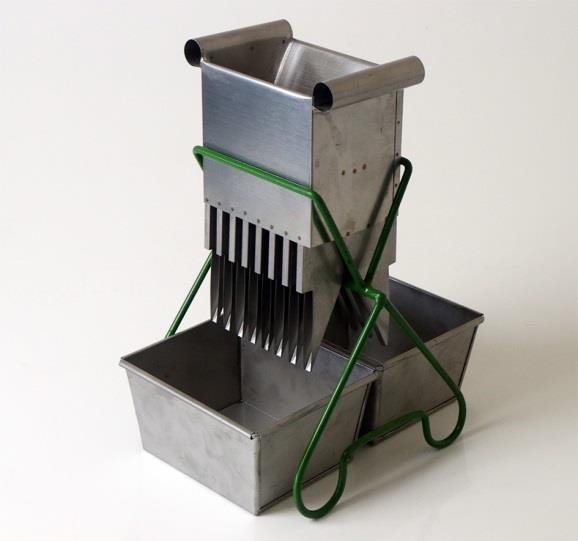

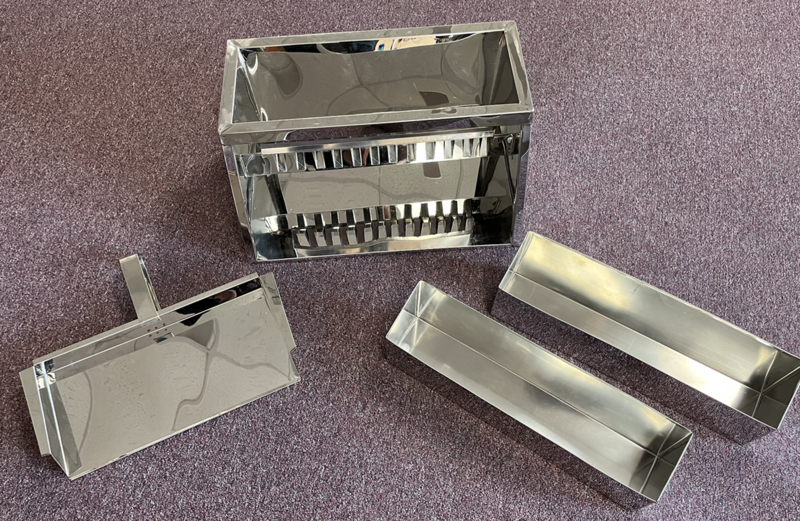

SLOT TYPE SAMPLE SPLITTER
These hand held sample dividers will subdivide material samples into smaller portions by single or multiple passes.

The important feature of Endecotts sample dividers is that each subdivision retains the characteristics of the original sample.

Produced in 316 stainless steel
SAMPLE SPLITTER 600 1/4SSDSLOT

WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
ALL RIGHTS RESERVED QAQC

ORDER ONLINE
QTY                REF #                   DESCRIPTION
600 ¼ SSDSLOT         SAMPLE SPLITTER 1/4" SLOT

600 ½ SSDSLOT         SAMPLE SPLITTER 1/2" SLOT
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                  (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
Advantages:
Stainless steel with slot widths 6.35 mm (¼") or 12.7 mm (½").
Ideal for free flowing powders.
Suitable for use with powder chemicals, food stuff, feed and similar granular material.
Splits sample to analytical proportions.
Characteristics of original sample maintained.
1/4 INCH SAMPLE SPLITTER

Unit consists of Divider plus 3 receiving boxes
12 – slots ¼" wide x 2 7/8" long. 6.35 mm wide
Overall length of Divider body 130 mm
Overall width of Divider body 133 mm
Overall height of Divider body 101.5 mm
Overall length of Divider boxes 98.6 mm
Overall width of Divider boxes 63.5 mm
Overall depth of Divider boxes 52.4 mm
Weight of Unit 1 kg approx.
Volume 0.3 liters
1/2 INCH SAMPLE SPLITTER

Unit consists of Divider plus 3 receiving boxes (with handles)
12 – slots ½" wide x 3 15/16" long. 12.7 mm wide
Overall length of Divider body 229 mm
Overall width of Divider body 216 mm
Overall height of Divider body 133.5 mm
Overall length of Divider boxes 184.2 mm
Overall width of Divider boxes 98.6 mm
Overall depth of Divider boxes 120.7 mm
Weight of Unit 3 kg approx.
Volume 1. liter
