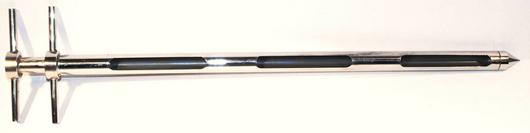

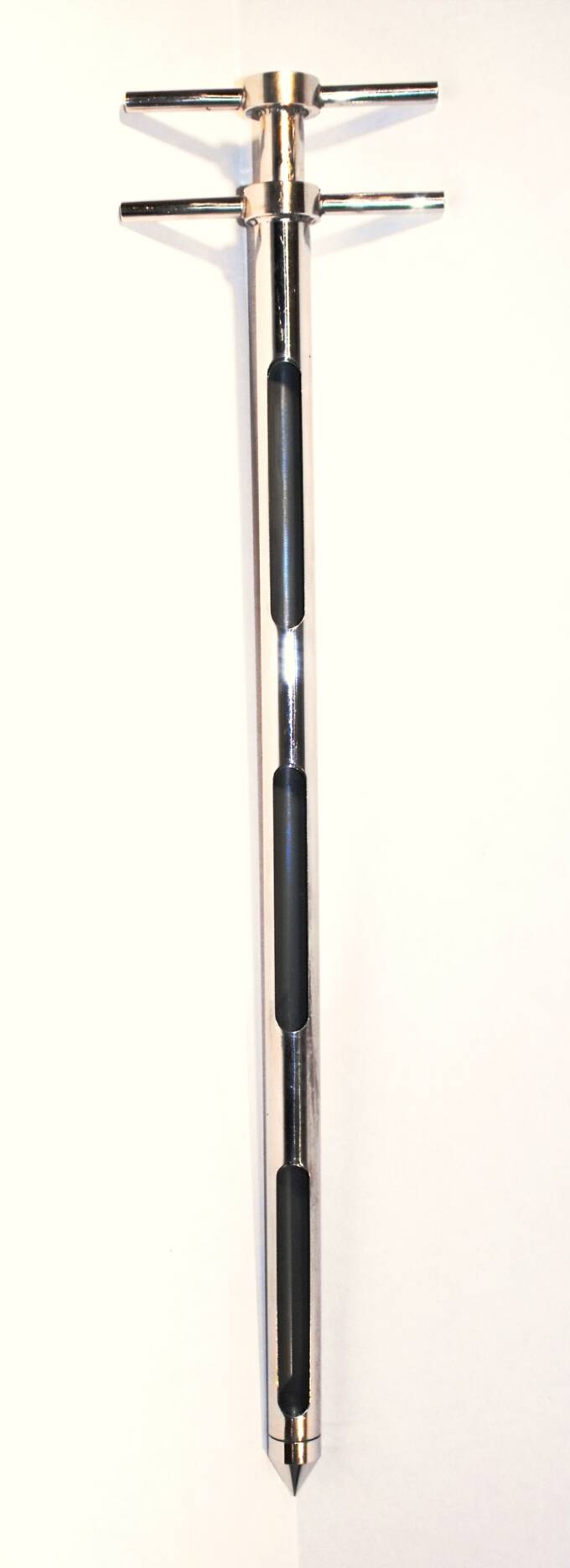

The Slot Sampler is ideal for taking a large volume, cross sectional sample from a container. The sampler has a robust all stainless steel construction and is suitable for sampling free flowing powders, granules and even slightly cohesive powders.
Type:           Cross section (composite sample)
Material:     316 stainless steel, bright finish
General:     Suitable for taking large volume samples.

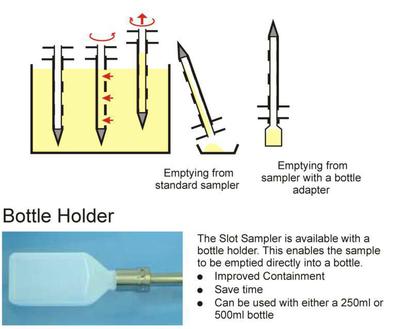

OPERATION:

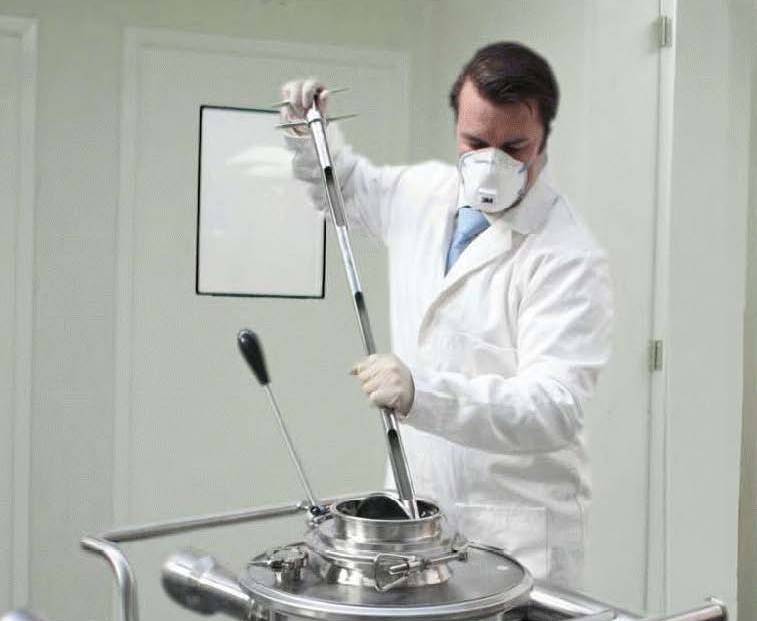

1. Insert the sampler into the product
2. Turn the handle to open the slot - the product can
     now be collected in the central tube
3. Turn the handle to close the slot
4. Remove the sampler
5. Invert the sampler to discharge the sample.
QAQC LAB HEAVY DUTY MULTILEVELSLOT SAMPLERS
JUMBO SIZE AVAILABLE IN 316 STAINLESS STEEL OR ALUMINUM
SAMPLE BEING
DISCHARGED
Now disposable slot samplers available!
100 ml or 170 ml sample volume
600 mm
900 mm
BUY ONLINE
LENGTH            DIAM

300   mm            25 mm

600   mm            25 mm

1000 mm            25 mm

1500 mm            25 mm

2000 mm            25 mm


600   mm            25 mm

1000 mm            25 mm

1500 mm            25 mm


900   mm            50 mm

1500 mm            50 mm

2500 mm            50 mm


900  mm             40 mm

1500 mm            40 mm

2000 mm            40 mm



600 mm              25 mm

1000 mm            25 mm

1500 mm            25 mm
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
B DENOTES BOTTLE HOLDER
(NOT AVAILABLE ON JUMBO)
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
BROCHURE
CUTTING SCROLL MODEL FOR COMPACTED POWDERS 675 1216A
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone    (804) 318-3686
Toll Free US (866) 244 1578
Fax                 (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
DISPOSABLE SLOT SAMPLERS
COHESIVE SLOT SAMPLER 316 STAINLESS STEEL

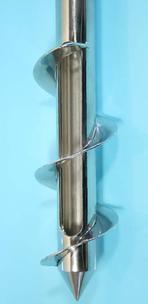

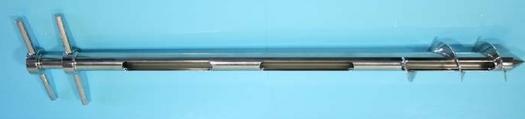

AVAILABLE WITH CUTTING SCROLL FOR COMPACTED POWDERS
AVAILABLE WITH BLADES FOR COHESIVE POWDERS
 LENGTH

600 mm

1000 mm

1500 mm
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
REF#

675 1210A300

675 1210A600

675 1210A1000

675 1210A1500

675 1210A2000


675 1210B600

675 1210B1000

675 1210B1500


675 1210J900

675 1210J1500

675 1210J2500


675 1210K1000

675 1210K1500

675 1210K2000

WITH CUTTING SCROLL

675 1216A 600

675 1216A 1000

675 1216A 1500
VOLUME

45     ml

110   ml

190   ml

300   ml

370   ml


110   ml

190   ml

300   ml


880   ml  (ALUMINUM)

1700 ml  (ALUMINUM)

2900 ml  (ALUMINUM)


750   ml

1000 ml

1300 ml



110   ml

190   ml

300   ml
SLOTS

3

3

4

5

5


3

4

5


3

4

4


3

5

7



3

4

5
SPECIFICATIONS
QUICK QUOTE
VOLUME

110 ml

190 ml

300 ml
REF #

675 2210A600

675 2210A1000

675 2210A1500
DIAMETER

25 mm

25 mm

25 mm
SLOTS

3

3

5
SLOT SAMPLER
STORE SEARCH
J DENOTES ALUMINUM CONSTRUCTION
(NOT RECOMMENDED FOR GMP)
