The EFL has been specially designed to operate with heavy samples without loss of performance. It is equipped with a dynamic power source which ensures the right vibration is imparted to the sieves and sample for fast, accurate and reproducible tests. The vertical movement is fixed to ensure the sample spends maximum time seeking apertures rather than being suspended in mid air. As with other Endecotts shakers the unique vibratory action also helps keep the apertures clear and free from blinding.

The EFL shaker is fitted with a new and totally unique clamping device. It ensures sieves are held firmly without overtightening and allows them to be quickly removed and replaced.

The timer can be pre-set for any duration up to 60 minutes. Non-corrodible, non metallic springs are fitted making the EFL maintenance free.
SPECIFICATIONS

Height including rods: 39.5"
Diameter: 21" (Handles: 2x35 mm)
Unpacked Weight: 183 lbs
Packed Weight: 233 lbs
Power Supply: 220/240 V 50 Hz 430VA,   100/110 V 60 Hz 375W
Other voltages & frequencies on request.
Compatible with 8" and 12" sieves
The EFL 2000 series are rugged, no nonsense, and quiet sieve shakers, ideal for on site and heavy duty applications. When heavy or large bulk samples need to be analyzed it's important to use a shaker that is built for the job.
Used by DOTS and aggregate facilities nationwide for heavy duty sieving operations
"We got the shaker today and WOW!! It is quiet. We ran some fine material threw it already and I'm sending you what we got. We are impressed."

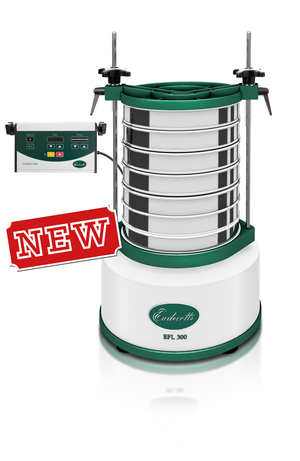

EFL HEAVY DUTY COMBO 8" & 12" SIEVE SHAKER
          FEATURES

Wet Sieving attachment is available for either 8" or 12" wet sieving
ORDER ONLINE

WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
ALL RIGHTS RESERVED QAQC

QUICK QUOTE
REF#                       DESCRIPTION

600 EFL 230 50  ENDECOTTS EFL SIEVE SHAKER 230 V 50 HZ

600 EFL 110 60  ENDECOTTS EFL SIEVE SHAKER 110 V 60 HZ
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
CE
EFL 300 BROCHURE
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
OPERATING INSTRUCTIONS
QTY

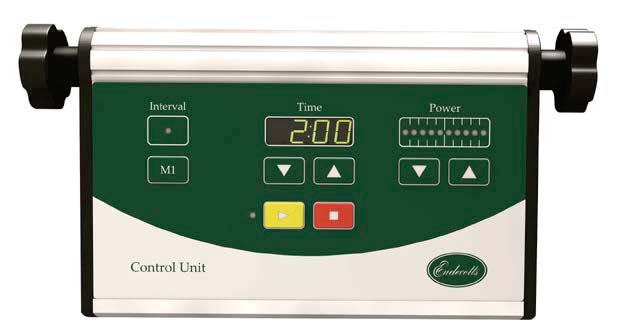

REMOTE DIGITAL CONTROLS
