LARGE VOLUME DEPTH SAMPLING OF FREE FLOWING POWDERS

SLEEVE SAMPLER SINGLE ZONE
QAQC SLEEVE SAMPLER
LARGE VOLUME DEPTH SAMPLING OF FREE FLOWING POWDERS 100 ml - 200 ml
Ideal for sampling large volumes at great depths, different sized chambers are available on the sleeve sampler, and can be attached to the same handle to allow different sample volumes to be taken.

Type:        Single Point
Material:   316 stainless steel, bright   finish
Options:    Special lengths and chamber sizes.
                 Extension handles

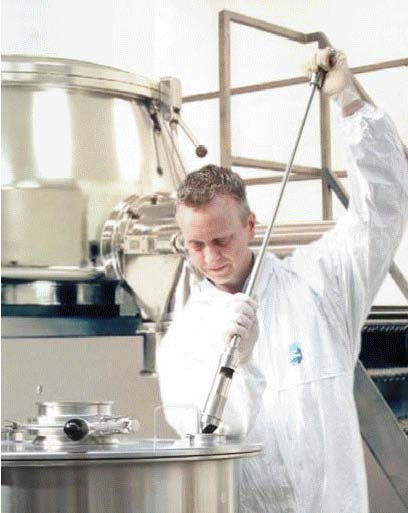

                                         OPERATION

 1. Select the correct tip for the volume to be sampled and screw it on  to the  handle.
     Insert the sampler into the product.

 2. At the required depth pull up the sampler slightly.
     This will force the sleeve down so that product can fall into the sample chamber.

3. Remove sampler.

4. To empty sampler either pour sample out of filling port or unscrew the removable tip.
QAQC LAB SLEEVE SAMPLER
675 1035
sleeve type powder sampler
1            2              3
sleeve type powder sampler
BUY ONLINE
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
REF #                  CHAMBER VOLUME

675 1035T100         100ml

675 1035T150         150ml

675 1035T200         200ml
REF#                 DESCRIPTION                           LENGTH

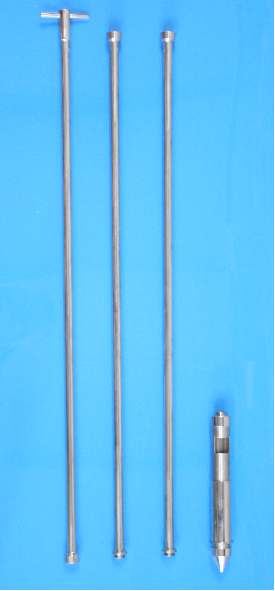

675 1035A1000    Heavy Duty Handle                  1000 mm

675 1035A1500    Heavy Duty Handle                  1500 mm

675 1035E1000    Heavy Duty Extension Rod       1000 mm

675 1035E1500    Heavy Duty Extension Rod       1500 mm
sleeve type powder sampler
sleeve type powder sampler

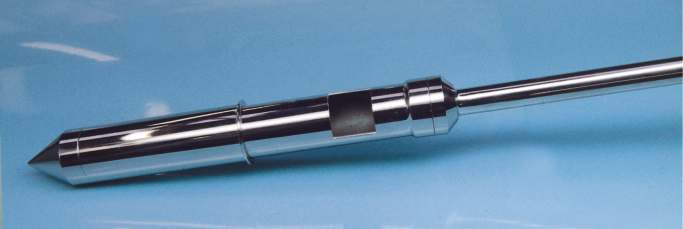

CHAMBER SCREWS TO HANDLE TO ACCOMODATE DIFFERENT CHAMBER VOLUMES
 TIP SCREWS IN TO CHAMBER
ENTRANCE PORT FOR POWDER
