• The reliable AW Quick mode for quick results (typical 4 - 5 min)
• Easy use with a Smartphone App for iOS and Android

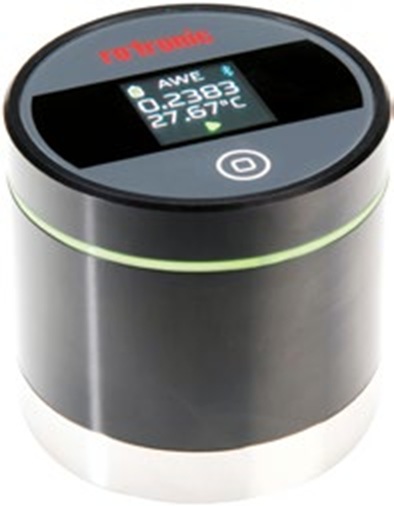

• Standalone measuring device with light ring and display
• Long battery life with wireless charging
Measurement
• AW Quick functions for quick results within 4 to 5 minutes
• Normal aw measurements in about 50 minutes
Connecting
• Easy connection via Bluetooth and App
• Magnetic attachment for the wireless charger
App Functions
• Changing the measuring settings and modes of the measurement head
• Automatic generation and saving of a report after each measurement
• Direct downloads of the measurement reports
• Firmware Update
Stable housing
• Use of robust materials such as aluminum and stainless steel
• Display and light ring indicator for the status
Sensor HYGROMER WA-1
Accuracy @ 23 ±5 °C ± 0.008 aw / 0.8 %rh / ±0.1 K
Operating conditions 0…70 °C / 0…100%rh
Storage conditions -10…70 °C / 0…100 %rh
Parameters shown aw, %rh, °C, °F
Status light Yes
Long-term stability < 1 %rh / year (normal conditions)
AW Quick Mode Yes
Display 1.2” LCD color display
Button Multifunctional touch button
Trend display Yes
Clock Real time clock provides a time
stamp for every measurement
Batterie capacity 500 mAh
Power supply 5 V DC 1.5A 7.5 W max (AC adapter)
Power supply plugs US / EU & UK
USB cable USB-A to USB-C
Firmware update Direct over the App
Protocols (values) Date, time, aw / rh / °C / °F,
aw setpoint, serial no., etc.
HygroSoft and HygroLab
compatibility No
Acoustic alarm No
Calculations No psychrometric calculations
available
Dimensions Ø68 x 65 mm
Housing material Aluminum, stainless steel & PC
Weight 600 g
CE conform CE 2014/30/EU
IP protection rating IP65
