Spin Riffling:

Proven to be the most accurate sampling method
available for powders and granular material.

Eliminates operator error and bias associated with
other types of sample dividing.

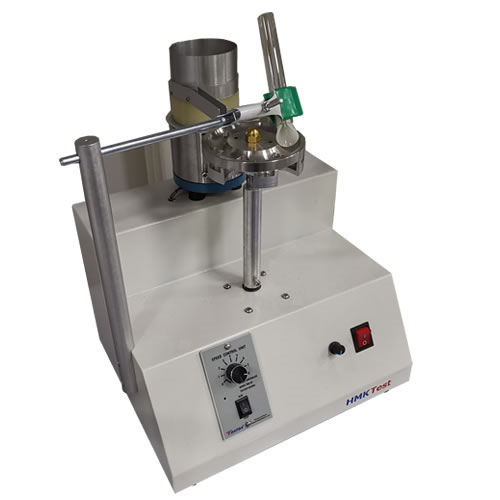

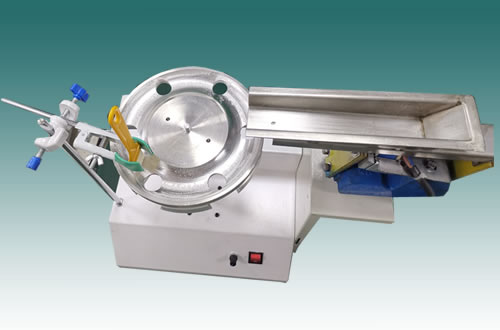

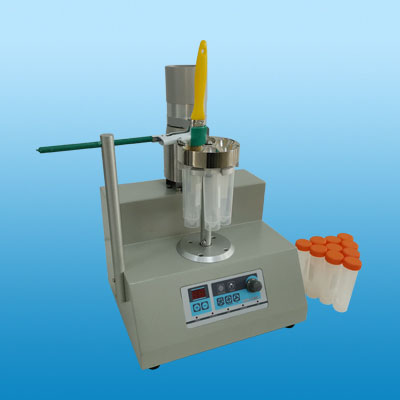

SP230 Spinning Riffler is a rotary sample divider that offers much better accuracy and reliability than traditional riffle splitters for separating dry materials. A built-in vibratory feeder provides a constant flow of material from a stainless steel hopper with 1L capacity. The durable urethane-based resin dividing head sharply separates flowing material into as many as sixteen 60ml glass sample containers.
SPECIFICATIONS:

Hopper Capacity 61in³ (1L)
Revolutions per Minute 0—20rpm
Electrical 85-264V / 47-63Hz, 1 Phase, 2.5Amps

Product Dimensions
W x D x H 13 x 20.5 x 23 in (330 x 521 x 584 mm)
Estimated Shipping Weight 79.0lb (35.83kg)

FEATURES:

Isolated motor and vibrator promote safe, quiet operation

Touch screen controller displays rotation speed and vibration level for optimal control

Optional Threaded Vials make capping of sample quick and easy with minimal handling required
712 SP230 Spinning Riffler

ACCESSORIES

712 SPA260      60ml Standard Test Tubes placed inside drum during operation help contain spillage

Sample Test Vials for sealing and storing freshly divided samples

712  SPA263 Sample Drum holds tubes, vials and sample dividing head to collect divided specimens

712  SPA262 Sample Vessel Plate positions 20, 40 and 60ml sample containers in sample drum

712  SPA264 Sample Dividing Head can hold up to 16 standard tubes or vials

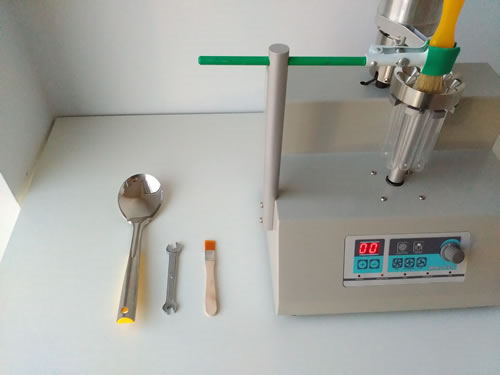

Included Items:

SP230 Spinning Riffler
Power cord for standard North-American outlet configurations
Sixteen-port Dividing Head
Sixteen Standard Test Tube Sample Vessels
Enclosed Sample Drum with stainless steel plate holds sample vessels
QUICK QUOTE
OPERATING INSTRUCTIONS
The innovative SP230 features a custom designed touchscreen controller/display, minimal moving parts and an outer case designed for easy clean-up and maintenance. Operation is quieter and safer thanks to an isolated motor and vibrator, automatic cog belt-drive system and sample vessel enclosure.

Available sample vials with threaded caps enable freshly divided samples to be sealed and stored immediately with minimal handling and little chance for contamination. A Standard Test Tube or Vials are contained within the drum during operation to minimize exposure of moving parts and contain spillage.

Rotation speed is continuously variable between 0—20rpm and the vibration amplitude of the feeder is variable as well. All adjustments are controlled and displayed on the touch screen. The unique, digitally controlled stepper motor turns a toothed belt and cogged drive wheel. Speed control is very accurate with no slippage under normal loads. A separate motor operates the vibratory feeder at 60Hz frequency and digitally controlled variable amplitude. A “sleep” mode conserves power when the unit is not operating. Main power supply voltage is automatically sensed, allowing any AC input from 85—264V, and 47—63Hz single phase.
