Newly developed Tuning-fork Vibration Method promises high accuracy and wide measurement range without replacing sensor plates! (Patent pending)

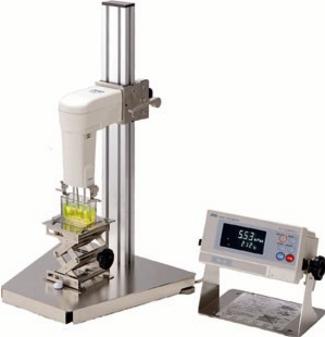

Sine-wave Vibro Viscometer SV-10 measures viscosity by detecting the driving electric current necessary to resonate the two sensor plates at constant frequency of 30Hz and amplitude of less than 1mm.
- High Measurement Accuracy
- Non-Newtonian Sample Viscosity Measurement
- Flowing Sample Measurement

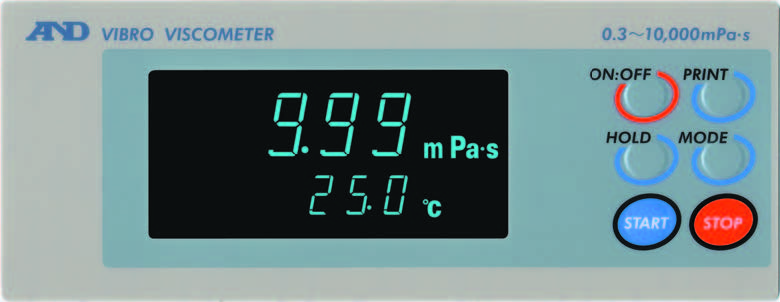

- Vacuum Fluorescent Displays
- Standard RS-232C Interface
- Data Collection and graphing Software
MODEL VIBRATION FREQUENCY MEASUREMENT RANGE UNIT OF MEASURE
SV-10 30Hz 0.3 cP (mPa.s) ~10,000 cP (mPa.s) mPa.s, Pa.s, cP, P
SV-100 30Hz 10 P ~ 1,000 P Pa.s, P
WinCT Viscosity
Via an RS232C interface, the WinCT-Viscometer software lets A&D's SV series Sine-wave Vibro Viscometer display measurement progress in real time on a PC, and easily transmit the measured results to save or analyze. The WinCT-Viscometer CD-ROM is a standard accessory with the SV Series viscometer.
RsVisco, the graphing software utilized by WinCT-Viscometer, lets you create graphs of measured results and of the progress of viscosity measurement:
1. RsVisco creates the real-time graph of data received from A&D's SV-series viscometer via RS-232C.
RxVisco lets you graphically monitor in real time:
■Progress of change in viscosity during measurement
■Temperature data
■Temperature and viscosity, graphed together
2. You can choose from three types of graphs:
■Viscosity (Y axis) - Time (X axis)
■Viscosity/Temperature (Y axis) - Time (X axis)
■Viscosity (Y axis) - Temperature (X axis)
3. Graphs can be overlaid in repeating measurements, in 10 colors.
4. Measured data can be saved in a CSV format file.
5. Displayed graphs can be printed with a printer via a PC.
(1) Example of RsVisco Display

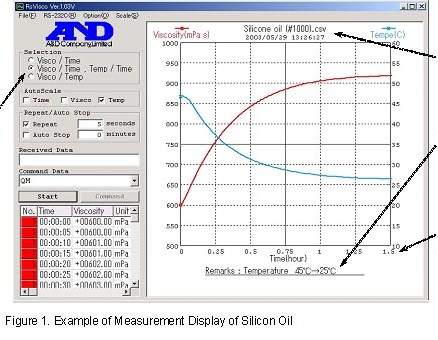

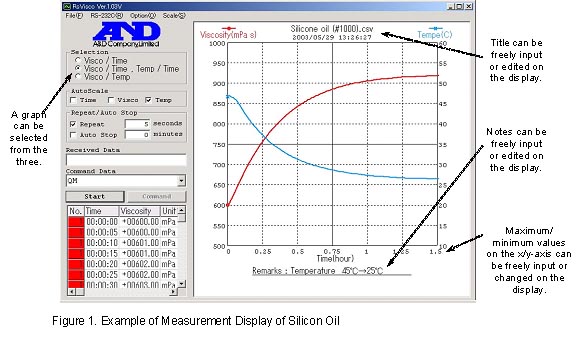

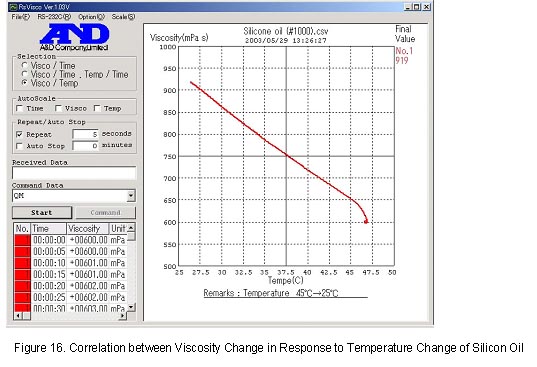

RsVisco software reads the measured results (CSV file) and creates a graph representing the measuring viscosity in real-time, as shown in the figures below. Figures 1 and 2 show the graphs representing viscosity changes of silicon oil (a Newtonian fluid) measured at room temperature while leaving it cooling down from about 45°C to 25°C. Figure 1 shows the elapsed time plotted along the x-axis, with the viscosity (left) and temperature (right) plotted along the y-axis. Figure 2 presents the same data by plotting the temperature along the x-axis and the viscosity along the y-axis. These graphs ideally present the linearity of the correlation between changes in viscosity in response to changes in temperature.
