HAND OPERATED LIQUID PUMP SAMPLER
Suitability: Low to medium viscosity liquids.
Type: Single Point
Material: PE , PTFE or 316L stainless steel

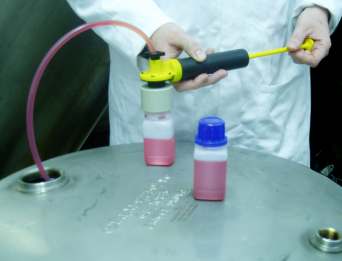

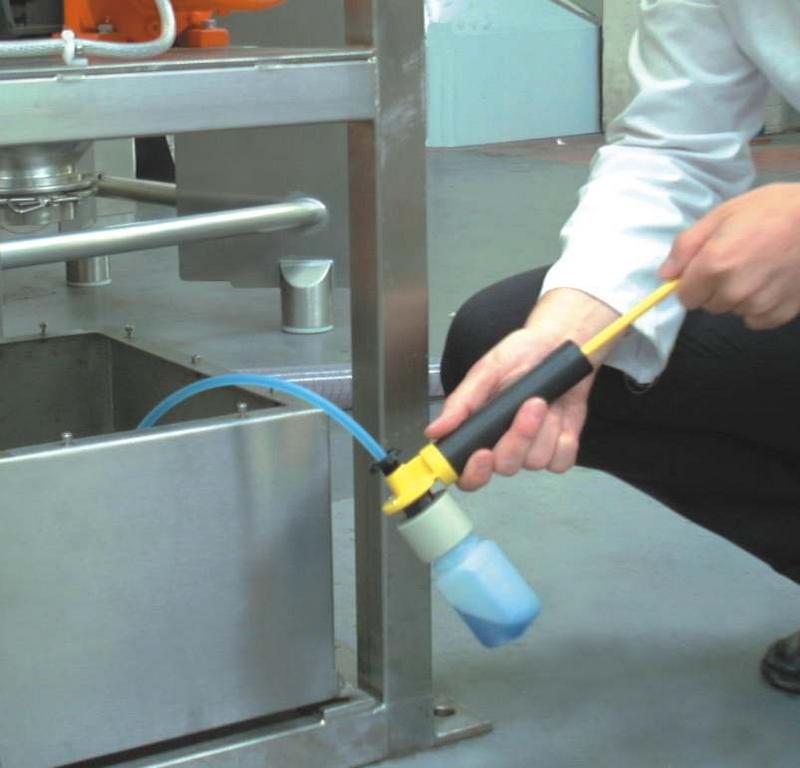

Operation:
1. Cut the sampling tube to the required length.
2. Screw the collecting bottle to the base of the hand pump.
3. Insert one end of the sampling tube through the hand pump
and into the collecting bottle.
4. Drop the other end of the sampling tube into the product.
At the required depth pump the handle.
Several pumps will fill the sample collecting bottle.

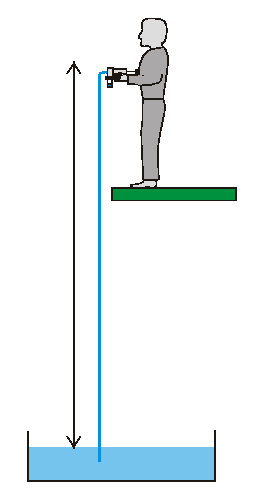

PUMP EFFICIENCY
The Pump Sampler is highly efficient,
and is able to pump water at a height
of about 13 feet (4 meters)
The pump is not a product contact part.
Only the tube and collecting bottle come
into contact with the product

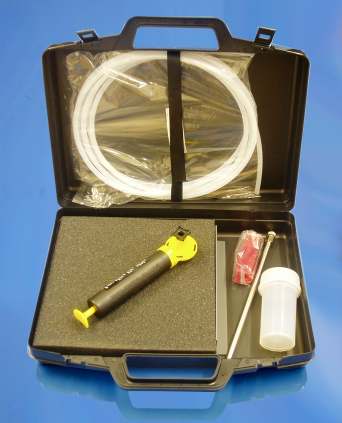

Set Includes
1 plastic hand pump with
PTFE bottle adapter
1 PFA Bottle (180ml)
1 Sampling Tube - PTFE - 5m
1 Tube cutter
1 Stainless steel hose weight
1 Carrying case

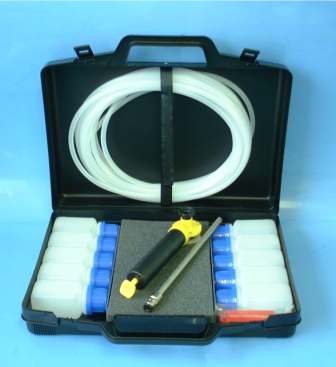

Set Includes:
1 Plastic hand pump with
PE bottle adapter
10 PE Bottles (100ml)
1 Sampling Tube - PE - 10m
1 Tube cutter
1 Stainless steel hose weight
1 Carrying case

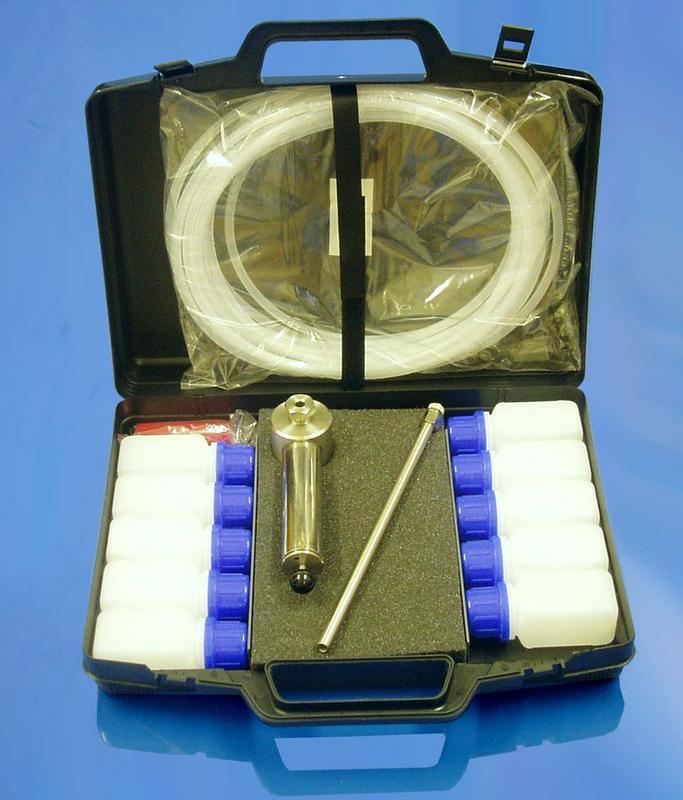

Set Includes
1 Stainless steel hand pump
and stainless steel bottle
adapter
10 PE Bottles (100ml)
1 Sampling Tube - PE - 10m
1 Tube cutter
1 Stainless steel hose weight
1 Carrying case
Use Your Current Sample
Collection Bottles
If you wish to use your own sample bottles,
PTFE adapters are available for a wide variety of
standard bottle neck sizes. However, if your bottle
has an unusual thread we can make you a special
PTFE adapter.
Adapters are available from other materials.
If you do not know what type of thread you have
send us one of your bottles and we will check.
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES FOR
ANALYTICAL INSTRUMENTATION
TELEPHONE (804) 318-3686
TOLL FREE (866) 244-1578
COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD

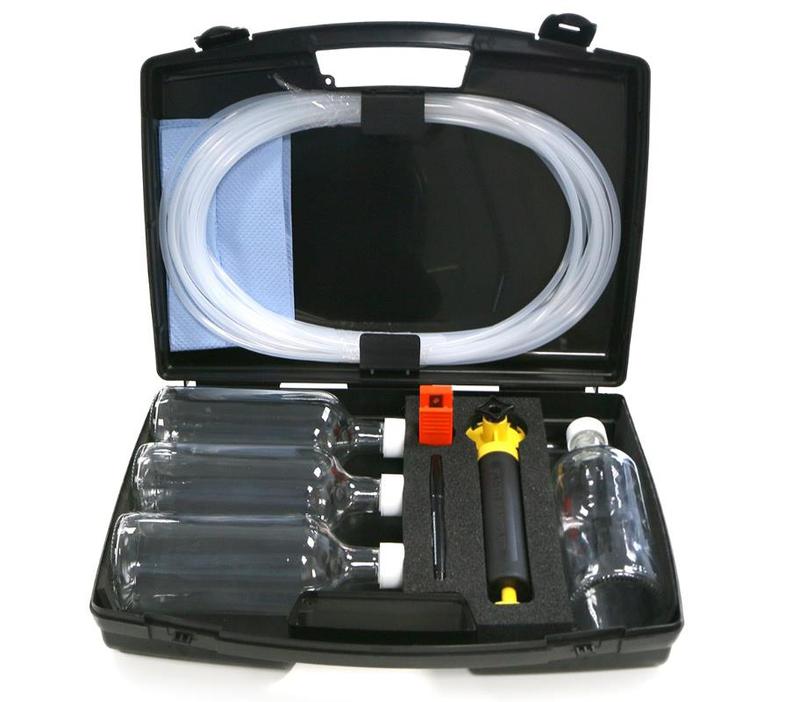

GLASS PUMP SAMPLER KIT
Set contains:
• 1 x Plastic Hand Pump
• 4 x Glass Bottle 500ml
• 1 x PE Hose 13m
• 1 x Tube cutter
• 1 x Pen
• 1 x Carrying Case
Allows quick sampling of liquids. The chance of cross contamination
is greatly reduced by using new tube and bottles for each sample.
