OCCHIO ZEPHYR LDA PARTICLE CHARACTERIZATION SYSTEM

SMALL TO MEDIUM SAMPLES FOR DIFFICULT POWDERS AND LIGHT GRANULAR MATERIALS
EXAMPLES: FLOUR, GROUND COFFEE, FREE FLOWING POWDERS
Occhio particle size and shape analyzers, are the collaboration of many years of
focused research in the fields of optics, lighting, and digital imaging.

Common methods of particle size analysis include laser diffraction, and sieve analysis,
both of which are based on the assumption that a sample is comprised of spherical particles.

While these methods of gathering size distribution information, provide usable results,
they lack in application, when compared with digital imaging technology.
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone   (804) 318-3686
Toll Free US (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
While laser diffraction measures scattered light, digital imaging works by eliminating diffraction, in order to capture high definition images.
AVAILABLE MEASUREMENT PARAMETERS

OCCHIO DIGITAL IMAGING THEORY
BROCHURE
NEW AUTOMATIC
AIR JET CLEANING SYSTEM
SMALL OR LARGE SAMPLES

DETECTION TO 7  MICRONS DRY, AND 1 MICRON WET
INTERNATIONAL SUPPORT NETWORK

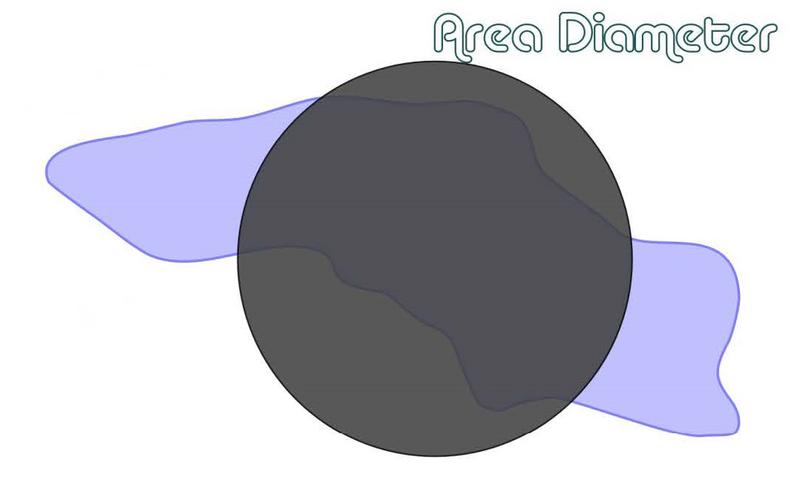

The Area Diameter (also known as the Equivalent Disc Diameter, (ED)) is the diameter of a circle having the same area as the particle.

Correlates with laser diffraction measurements
The Inner Diameter is the diameter of the maximum inscribed circle (the maximum circle lying completely inside the particle).

Correlates with sieve analysis measurements

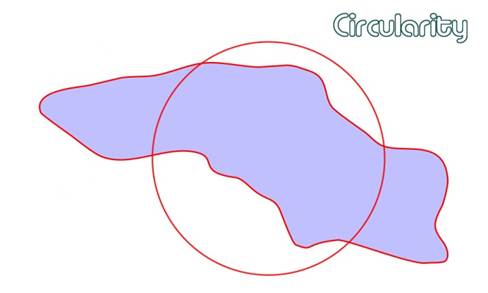

Circularity is defined as the ratio between the equivalent disc perimeter and the particle perimeter.

The degree to which the projection area of the particle is similar to a circle, considering the smoothness of the perimeter.

It is often used
for product flow studies
Inner Diameter
Bluntness
The Bluntness Index is the expression of a “maturity in the abrasion process”. It
specifies how far we are from a perfectly
rounded shape.

It is most often used to establish abrasive properties in materials.
For a complete list of available size and shape parameters, and an introduction to digital imaging theory, use the below downloads:

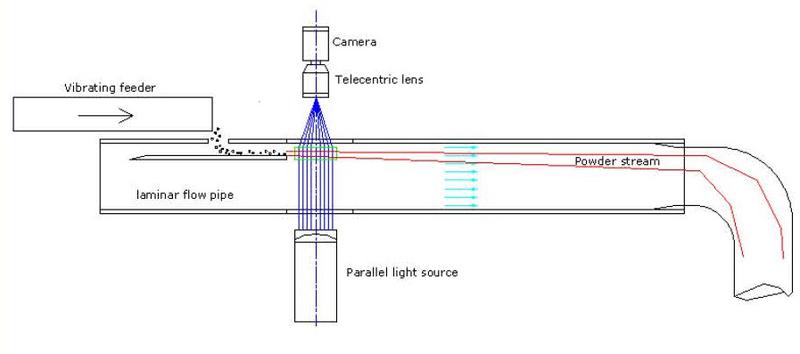

POWDER DISPERSION METHOD
The sample is fed on to the hopper, either through an adjustable height funnel, or with the addition of an auxiliary dispersion sieve. The hopper vibrates, and the sample travels to the vacuum entry point. Two parallel glass slides provide a laminar flow chamber, so the particles pass by the lens in an oriented fashion.
MOTORIZED FUNNEL HEIGHT
USING DISPERSION SIEVE
FOR COHESIVE SAMPLES
Using a special monochromatic blue backlight (Occhio pioneered research showing that certain wave lengths, enhanced particle definition), minimum particle detection moved from 1 micron (White Light) to 200 nanometers. The light is also collimated, and acts like a caliper

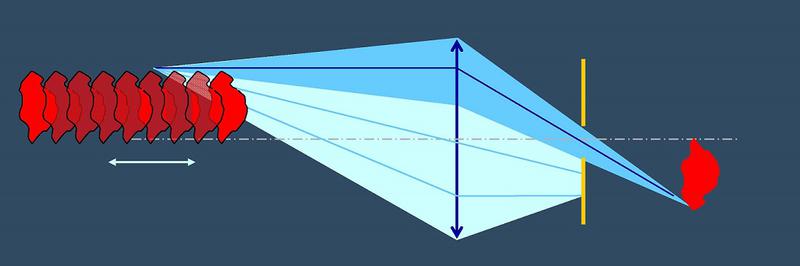

A telecentric lens is also employed, providing the
same magnification level at all distances.
