The MOC 120H ADVANCED DRYING MOISTURE BALANCE,995 offers many features previously available on more expensive instrumentsis used worldwide in a range of applications, from a variety of food products such as snack foods, dairy products, cereals, grains and baked goods, to substances as diverse as sand, cement, ceramics, gypsum, fiberboard, adhesives, pharmaceuticals, chemicals, sludge and slurries.

UNIBLOC WEIGHING MECHANISM - Provides excellent stability and a long operational life against repeated temperature changes, enabling easy measurements down to 0.001g.

CONTINUOUS INTERNAL AUTOTARING - Tares once every minute during testing, and every 30 seconds near the end of a test, eliminating drift, even over long periods of testing.

MID-INFRARED QUARTZ HEATING LAMP

What's different about mid-infrared?

Mid-Infrared waves with a central wave length of 2.6 microns, minimize effects of sample color, and eliminate overheating of the samples surface. Lamp service life is also extended 5 to10 times longer than older infrared and halogen heating lamps, giving operational life of 20,000 to 30,000 hours

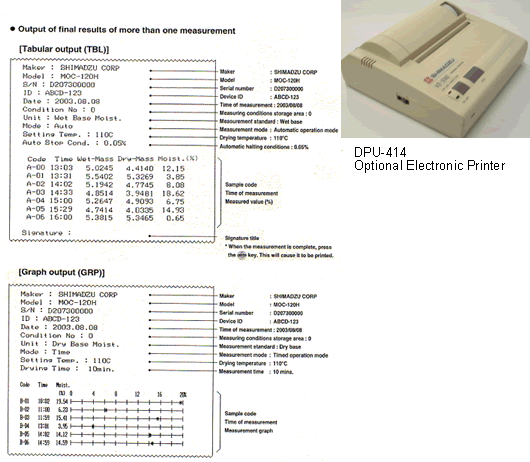

WINDOWS DIRECT - Complete sample data and instrument settings can be directly typed into any application on Windows® without any additional interface software

LARGE DIAMETER PAN - Allows more even spreading of sample to facilitate uniform drying.

TEMPERATURE DISPLAY OPTION - Displays thermistor area temperature or sample area temperature

HIGH QUALITY INSTRUMENTATION - Doesn't require excessively long warm up periods

BIAS FEATURE - Bias can be entered to match any other type of moisture balance, or other method.

The SHIMADZU MOC 120H Digital Moisture Balance is a professional grade laboratory instrument uniquely engineered with sample drying characteristics in mind. Most versatile method for measuring moisture.Large diameter pan allows for more even sample spreading for more uniform drying. Bias function allows data from other measuring methods or testers, to be adjusted. No need to be tied to obsolete equipment anymore.The drying process for the last 30 seconds is graphically displayed for quick visual reference, and results can be directly entered in to any WIndows Platform Software.

SHIMADZU MOC 120H Digital Moisture Balance

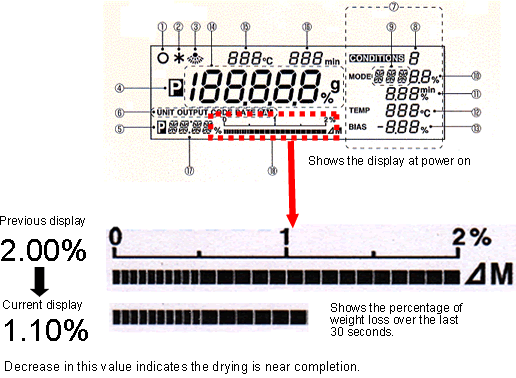

MOISTURE VAPORIZATION MONITORING

The moisture vaporization rate is monitored and can be visually seen on a bar graph display. This is useful to know as the measurement nears completion. It updates every 30 seconds.

AUTOMATIC ENDING MODE

Automatically ends measurement when moisture loss over the previous 30 seconds becomes smaller than specified percentage.

TIMED ENDING MODE

Automatically ends measurement when the specified amount of time has elapsed.

RAPID DRYING MODE

First dries with the highest temperature for the specified period, then shifts to the specified temperature, thus shortening measurement time

SLOW DRYING MODE

Mildly heats samples that may solidify in the surface or samples that reduce under high temperature.

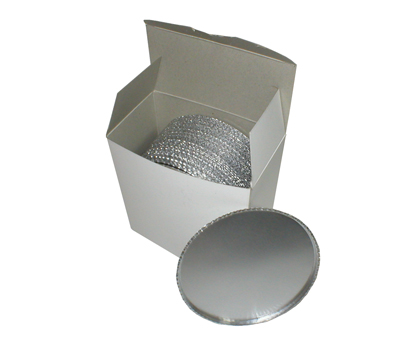

SAMPLE PANS 500 PER BOX

STEP DRYING MODE

Allows changing drying conditions step by step. This feature is useful when measuring samples that contain a large amount of water (up to 5 steps).

PREDICTIVE MEASURING MODE

With preparatory measurements of the sample, the final result is predicted from the drying process. As a result, it saves a fair amount of time during repeated measurements.

SHIMADZU ADVANCED ANALYTICAL MOISTURE BALANCE
