Dippers are ideal for taking surface samples from liquids and suspensions

Dippers: Stainless Steel, PTFE, Chemical, min dippers, disposable ladles

WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
[email protected]
WWW.QCLABEQUIPMENT.COM
ALL RIGHTS RESERVED QAQC

Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
BROCHURE
STAINLESS DIPPERS
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                  (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE
liquid dipper
liquid dipper
stainless steel dippers

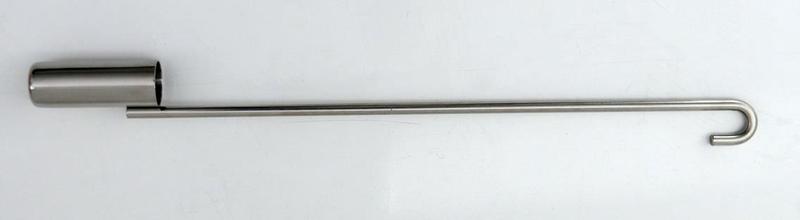

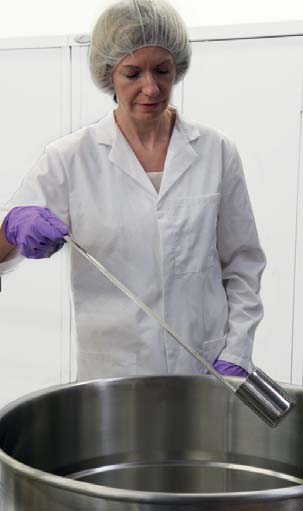

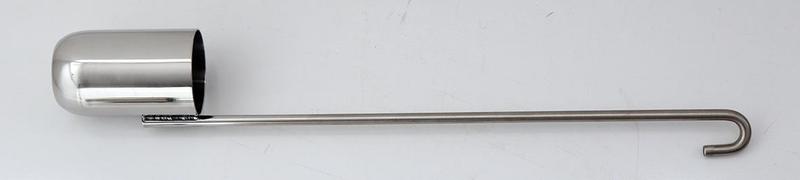

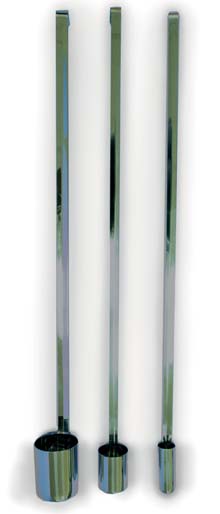

Stainless Dipper

GMP Correct Liquid Sampler

• 316 stainless steel construction

• Fully welded

• Satin finish
DIPPERS
Dippers are ideal for taking surface samples from liquids and suspensions
Part No.               Volume             Length             Outside Cup Diameter

675 5005A50         50 ml               600 mm            32 mm

675 5005B50         50 ml             1000 mm            32 mm

675 5005C50         50 ml             1500 mm            32 mm

675 5005A100     100 ml               600 mm            39 mm

675 5005B100     100 ml             1000 mm            39 mm

675 5005C100     100 ml             1500 mm            39 mm

675 5005A250     250 ml               600 mm            64 mm

675 5005B250     250ml              1000 mm            64 mm

675 5005C250     250 ml             1500 mm            64 mm

675 5005A500     500 ml               600 mm            90 mm

675 5005B500     500 ml             1000 mm            90 mm

675 5005C500     500 ml             1500 mm            90 mm

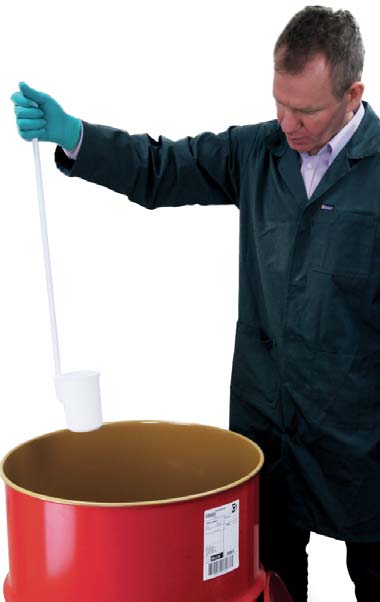

PTFE Dipper
Excellent Chemical Resistance - GMP correct

• PTFE product contact parts

• Screw-in extension rods to increase the length of the handle
liquid dipper
ptfe liquid dipper
Part No.                Volume      Cup Diameter          Handle Length

675 5100A10         10 ml           25 mm                     200 mm  (MINI DIPPER)

675 5100A100     100 ml           55 mm                     600 mm removable

675 5100A250     250 ml           70 mm                     600 mm removable

675 5100A500     500 ml           80 mm                     600 mm  removable

675 5100A1000  1000 ml        105 mm                     600 mm removable

675 5100E600     Handle Extension rod                  600 mm
Part No.                          Beaker Volume           Overall Length

675 5065F250                250 ml                          1000 mm

675 5065F500                500 ml                          1000 mm

675 5065F1000            1000 ml                          1000 mm
chemical dipper

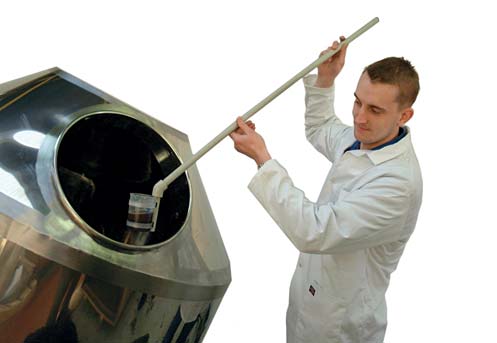

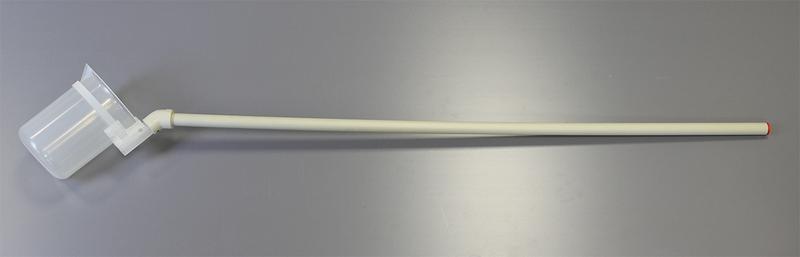

Chemical Dipper
Robust Polypropylene Dipper

• Ideal for general industrial applications
• Durable polypropylene construction
Ladles
ladles
675 A32450

675 A324120

675 A324150

675 A324200

675 A32650

675 A326150
PART NUMBER
50 ml

120 ml

150 ml

200 ml

50  ml

150 ml
VOLUME
304 ss

304 ss

304 ss

304 ss

316 ss

316 ss
MATERIAL
multi dipper
SPECIFICATIONS
STAINLESS LADLES

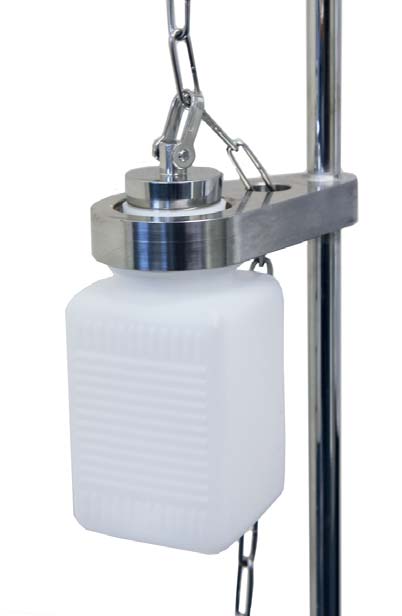

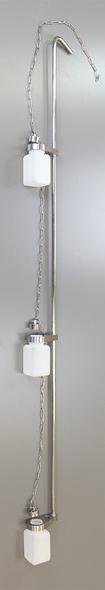

MULTIDIPPER 2

Multilevel Liquid Sampler
The Multi Dipper 2 is the ideal solution for taking liquid samples from different levels.

The sample collection bottles remain closed until the operator uses the control chain to
remove the stoppers.
High security stainless steel shackles are used to secure the plugs to the control chain

Product contact parts are:

• Sampler frame 316ss
• Control Chain 316ss
• Plugs 316ss
• Plug Shackles 316ss
• Sample Bottle HDPE
Stock No.                   Length                    Bottles

675 5045A1000       1000 mm                3 x 250ml included (675 8165A250)

675 5045A1500       1500 mm                3 x 250ml included (675 8165A250)

675 5045A2000       2000 mm                3 x 250ml included (675 8165A250)


SPARES

675 8165A250         Spare sample bottle - HDPE - 250ml
Operation

1. Screw the bottle into the holders
2. Insert the plugs into the tops of the sample bottles
3. Connect the Control Chain to the plugs
4. Insert the assembled sampler into the liquid to be sampled
5. Pull on the Control Chain to open the bottles
6. Remove from the liquid tank

multi dipper
BUY ONLINE
ladles
ptfe liquid mini dipper

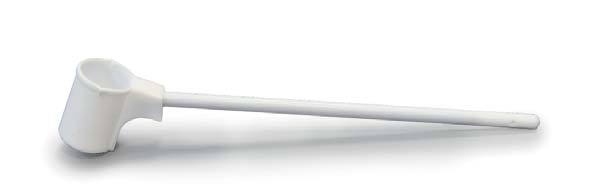

PTFE Mini Dipper
Excellent Chemical Resistance -
GMP correct
chemical dipper
multi dipper disposable ladle
Part No.                                     Volume       Diameter  Material

675 8053H50                               50 ml         48 mm        HDPE

675 8053H50S (PRE-STERILIZED) 50 ml         48 mm        HDPE
The Disposable Ladle is ideal for the surface sampling
of liquids. They can be used straight-from-the-bag;
simply unwrap and use.

The one piece moulded design has been specially
constructed to go through standard 2” lid bungs which
are commonly found on barrels and kegs.

• Moulded & Packed in a Cleanroom
• Individually Bagged
• FDA & EU 10/2011 Conforming Materials
• BSE/TSE Free
• Full Batch Traceability
• Available Sterile (gamma irradiated)
• Available from stock

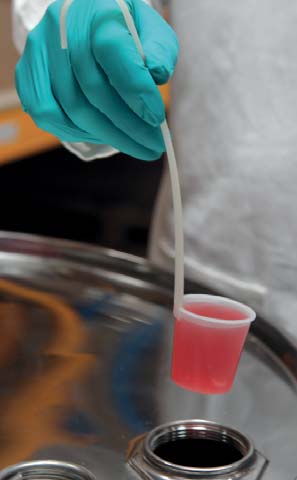

Disposable Ladle
Efficient surface sampling of liquids
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES ​FOR
ANALYTICAL INSTRUMENTATION

TELEPHONE (804) 318-3686
TOLL FREE   (866) 244-1578

COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
stainless steel liquid dipper
stainless dipper
stainless dipper

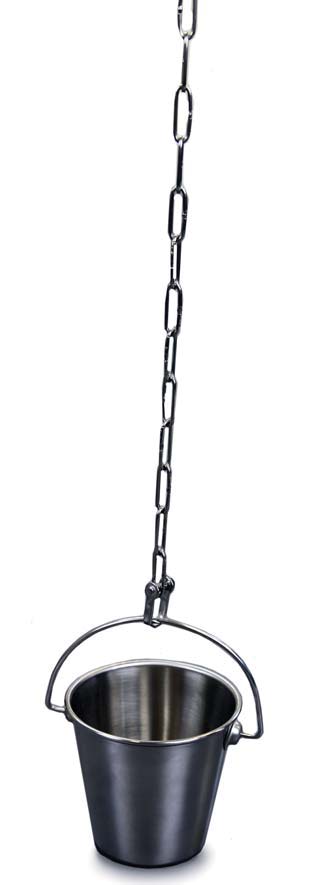

Enviro Dipper

The Enviro Dipper is a simple and yet effective method of taking a surface sample. Simply
lower the bucket into the liquid.
The stainless steel bucket can be ordered with either a stainless steel chain or a braided
polypropylene cord.
enviro dipper bucket
enviro dipper
SPECIFICATIONS
SPECIFICATIONS
675 A725300  STAINLESS BUCKET 300 ml
