BROCHURE CUP SAMPLER
CUP SAMPLER              LENGTH               VOLUME          CUP DIAMETER
QTY
675 5030A600

675 5030A1000

675 5030A1500

675 5030J1000

675 5030J1500
600 mm

1000 mm

1500 mm

1000 mm

1500 mm
100 ml

100 ml

100 ml

500 ml

500 ml
55 mm

55 mm

55 mm

80 mm

80 mm
BUY ONLINE
EQUIPMENT FOR QUALITY CONTROL AND R&D
www.qclabequipment.com
Telephone      (804) 318-3686
Toll Free US   (866) 244 1578
Fax                (703) 991-7133
Hours      8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT


DELIVERIES WORLDWIDE

PERFORMANCE GUARANTEE

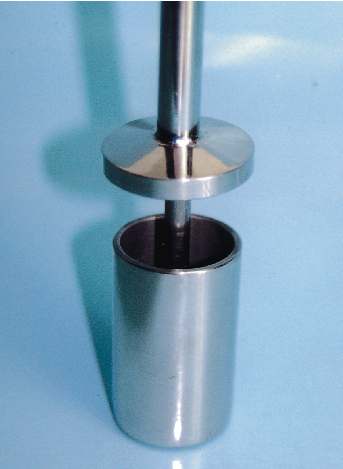

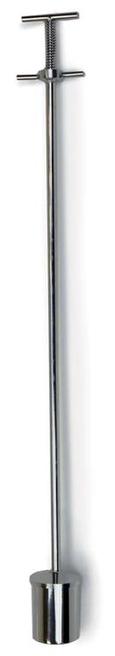

The ever popular Cup Sampler is ideal for sampling liquids and suspensions.

Manufactured from 316 stainless steel, the Cup Sampler enables discrete samples to
be easily taken from known heights within the product.

• Single Point Liquid Sampler
• 316 stainless steel product contact parts
CUP SAMPLER

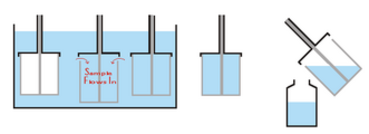

Operation

1. Insert the sampler to the required depth.

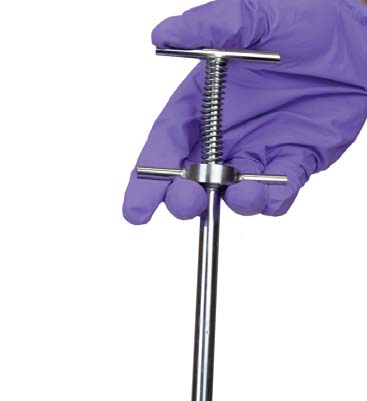

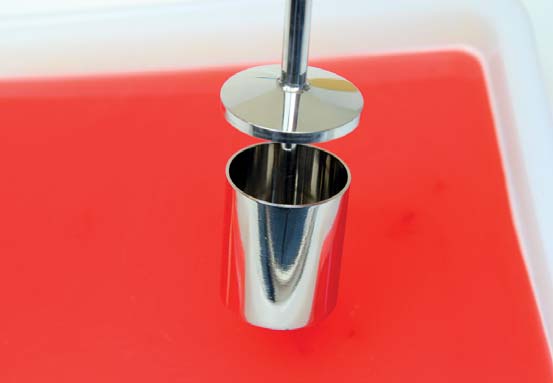

2. Squeeze handle which pushes the cup away from the lid, allowing the liquid to enter the cup.

3. After filling, remove the sampler. To empty the sampler either tip the sampler
    while squeezing the handle or unscrew the collecting cup.
