AD ENGINEERING M SERIES MOISTURE BALANCES (5 YEAR WARRANTY)
AD Engineering M Series Moisture Balances provide an impressive array of standard features, and upgrades, including advanced analytical software
Halogen lamps are used as the heating source, with Secondary Radiation Assist. A standard halogen lamp heats somewhat unevenly due to the varying distance between the sample and the heat source. SRA utilizes a glass shield between the heat source and the sample, which collects, and then radiates heat in a more uniform manner. Glass fiber cloth is available to help protect
samples from surface burn, and minimize the effects of color on heat absorption.

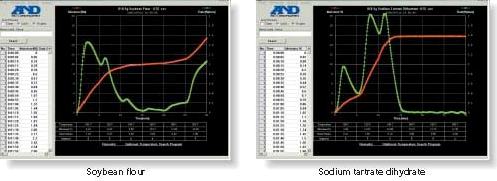

Using RS-Temp (OTS = Optimum Temperature Search Program) and WinCT-Moisture software (Patent pending), the sample is heated to between 100 ~ 200 degrees in 20 degrees steps for 5 minutes. The results are displayed on a graph to help ascertain the optimum drying conditions for the sample. The OTS RS-Temp requires only 30 minutes to test the sample with 6 different temperature settings, greatly reducing the need to conduct trials.

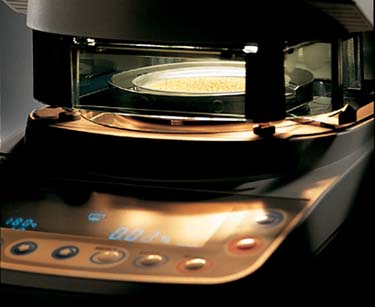

SECONDARY RADIATION ASSIST UTILIZES A GLASS SHIELD TO HELP RADIATE HEAT IN A MORE UNIFORM MANNER
HANDY BASIC INSTRUCTIONS

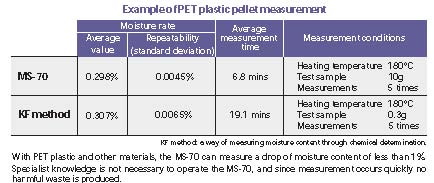

The MS 70 CAN DETECT VERY SMALL AMOUNTS OF MOISTURE TO .001%, GIVING DIRECT METHOD ACCURACY SIMILAR TO KARL FISCHER.
SEND MESSAGE HERE
EMAIL ADDRESS
NAME
LOCATION ZIPCODE
CALL BACK DATE
COMPANY
TELEPHONE
TIME (USE LOCAL TIME)
Additionally, WinCT-Moisture includes software called RS-Fig. The RS-Fig software shows the Time Line and Moisture (%) line graph. You can repeat the measurement then display it with a different colored line to visually see the change of the sample under test.
